V-Cut PCB Separator for Precision Depaneling

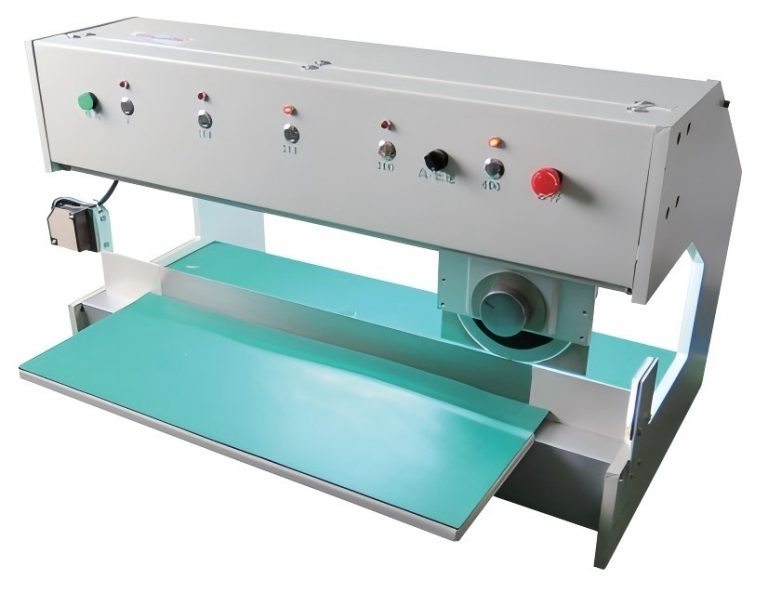

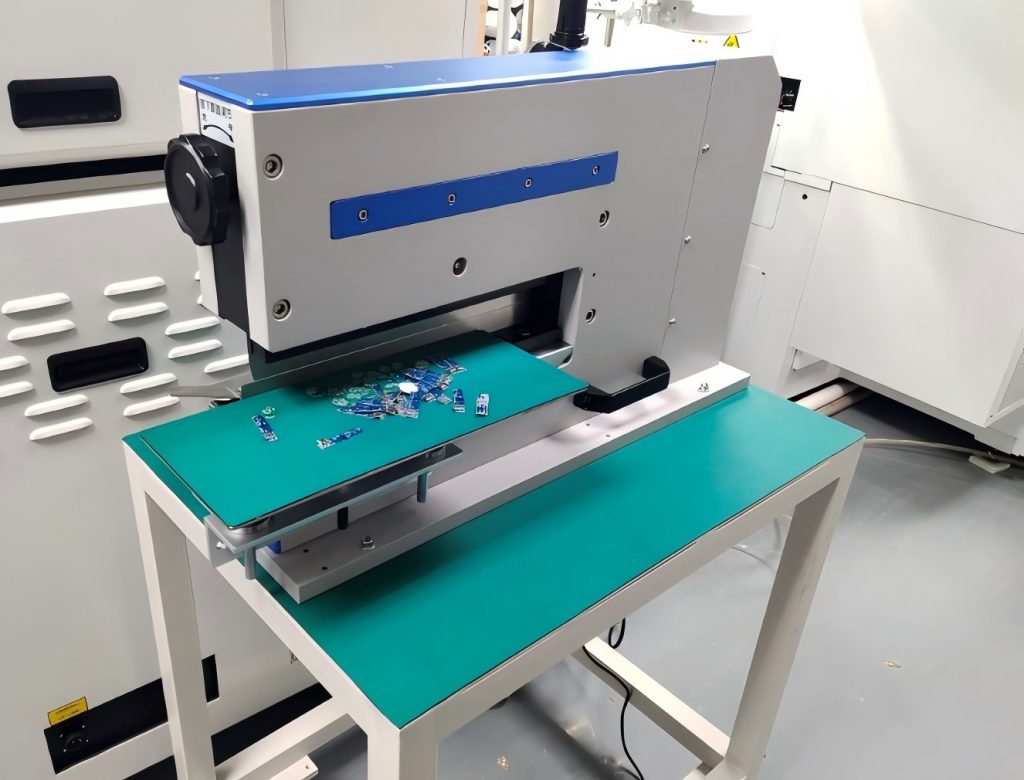

Our v-cut pcb separator is engineered to provide stress-free, high-precision depaneling for your electronics assembly line. As a professional automatic pcb depaneling machine, it effectively minimizes residual stress on sensitive electronic components during the cutting process. Whether you are handling standard boards or complex arrays, this pcb board cutting machine ensures clean, burr-free edges, significantly enhancing production consistency and product reliability.
- Features：
1. This machine apply the new type improved wireless sectional cutting technology to handle operations for V-cut connecting plate & split board and effectively remove stress. - 2. Adjust the blade gap easily, even highly sensitive SMD parts or ultra thin PC plate can be cut safely.
- 3. Apply the activated parts driven with no noise.
- 5. Suit for V- PCD plate, aluminum plate and CUT plate etc..
- 6. Control by electric pedal or pneumatic pedal. The hoe knife plate splitting is completed by the motion of air cylinder.
Technical Specifications & Efficiency
| Model | KLD-303 |
| Maximum board length | 330mm(Can be customized to 450mm) |
| Supporting board thickness(D) | 0.6mm~3.0mm |
| V-slot side nearest component distance(E min) | ≥0.5mm |
| Max height of component on the board(H max) | ≤20mm (If higher,change the blades) |
| Pedal | Electric /Penumatic pedal option |
| Working Pressure | 0.4~0.6Mpa |
| Power supply | 220V/110V AC, 50Hz/60Hz (Electric pedal) |
| Supporting board material | Aluminum/copper substrate, Fr3/Fr4 with V groove |
| Dimension | 700*200*395(Penumatic pedal) 700*230*395(Electric pedal) |
| Weight | 145KG(without table) |
| Parameter | Technical Advantage |
| Cutting Mode | Stress-free V-cut depaneling |
| Compatibility | All V-groove PCB panels |
| Safety System | Sensor-based protection |
| Operation | Intuitive control interface |
| Build Quality | Industrial-grade robust frame |
FAQ
How does the V-Cut PCB separator prevent component damage?
It uses a specialized V-cut blade mechanism that minimizes mechanical stress during separation, protecting delicate components near the cutting line
Is this machine compatible with different PCB thicknesses?
Yes, the blade height and guide distance are adjustable to accommodate various PCB thicknesses and V-groove depths
Can this system be integrated into a larger production line?
Yes, our depaneling solutions are designed for modular integration with standard SMT conveyor systems to optimize your workflow.
