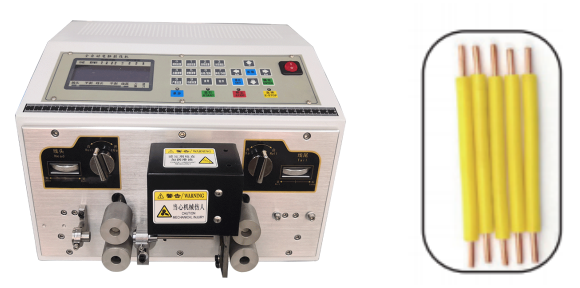

Wire Stripping and Cutting Machine
Our wire stripping and cutting machine is an industrial-grade solution designed to automate wire preparation with high precision. Equipped with a high-performance 32-bit Cortex-M3 core processor, this automatic wire processing machine delivers rapid cycle speeds and consistent cutting/stripping length control. Whether you are processing thin electronic wires or multi-core cables, our equipment ensures high throughput (up to 7000 PCS/H) and reliability, helping you reduce manual labor and optimize your cable assembly line
Features:
- Using the latest 32 bit Cortex-M3 core processor, running speed for a single cycle 72M.
- 5 way up to 100K of the pulse output, pulse type for “pulse + direction”, open collector output, output current up to 200mA.
- 7 high speed input point! The response time is less than 2uS.
- 4 way collect electric collect open circuit output.
- Equipped with a large capacity memory, you can save 100 sets of parameters, to facilitate the operator to operate.
Why Choose Kelanda Wire Stripping Machines?
Choosing Kelanda means investing in reliable, high-precision wire processing technology. We understand that your production throughput and product quality rely on consistent wire preparation. Here is why manufacturers worldwide choose our wire stripping and cutting machines:
- Precision-Engineered Accuracy: Our machines feature high-performance 32-bit core processors and precision mechanical sensors, ensuring that every wire is cut and stripped to your exact specifications. This consistency eliminates rework and reduces material waste, significantly improving your overall production yield.
- High-Speed Throughput: Designed for high-volume environments, our equipment supports rapid cycle speeds (up to 7000 PCS/H). By automating your wire processing workflow, you can significantly reduce manual labor costs and meet even the most demanding production deadlines.
- Versatile Compatibility: Whether you are working with thin electronic wires or multi-core cables, our machines offer flexible parameter settings and quick-change tooling. This versatility makes them ideal for both high-mix, low-volume runs and continuous large-batch production.
- Intelligent Parameter Storage: With large-capacity memory, our systems allow you to save up to 100 sets of processing parameters. Operators can switch between different wire jobs in seconds, minimizing downtime and simplifying your factory floor operations.
- Robust, Industrial-Grade Build: Kelanda machines are built for durability. From the durable blade materials to the anti-interference circuitry, we ensure our equipment withstands the rigors of 24/7 manufacturing operations.
- Full-Lifecycle Support: Beyond providing the equipment, we offer comprehensive guidance on machine configuration, tooling setup, and blade maintenance. Our engineering team is dedicated to ensuring your wire stripping and cutting process is optimized for your specific wire types and terminals.
Technical Specifications
| Model | KLD-825 | KLD-845 | KLD-880 | KLD-810 |
| Cutting core cross-sectional area | 0.1-2.5 square AWG32~AWG14 | 0.1-2.5 square AWG32~AWG12 | 0.1-2.5 square AWG32~AWG9 | 0.1-2.5 square AWG32~AWG7 |
| Wire diameter | 0.1-3.5mm | 0.1-4.5mm | 0.1-5.5mm | 0.5-7mm |
| Cutting length | 3-99999.99mm | |||
| Capacity(PCS/H) | 3500-7000 | 4000-7000 | 4000-7000 | 3000-7000 |
FAQs About Wire Stripping and Cutting Machines
What is the processing range of this wire cutting and stripping machine?
It supports cutting core cross-sections from 0.1 to 2.5 mm² and wire diameters ranging from 0.1mm to 7mm, depending on the specific model (KLD-825 to KLD-810).
How many sets of parameters can the machine store?
The machine is equipped with large-capacity memory capable of saving up to 100 sets of parameters, allowing for quick switching between different wire jobs.
What is the production capacity per hour?
Depending on the model and wire length, it can achieve a throughput of 3000 to 7000 PCS/H, significantly improving production efficiency.
