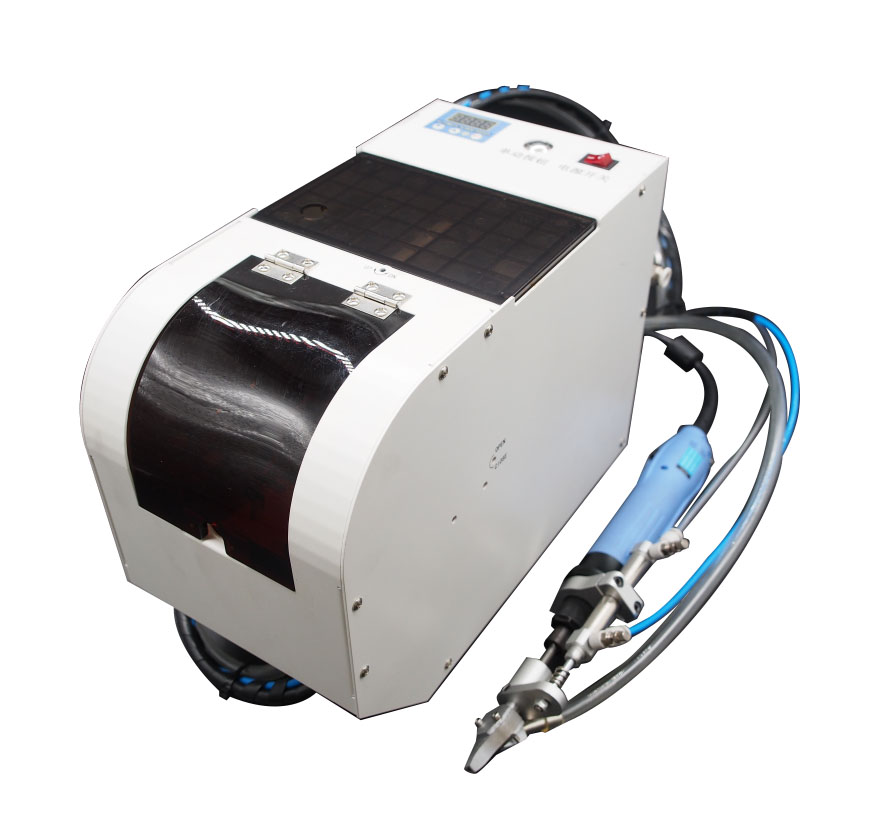

Handheld Screw Locking Machine
Our Handheld Screw Locking Machine is a precision-engineered, portable solution designed to automate manual fastening tasks in electronics and mechanical assembly. By integrating automatic screw feeding with a high-speed electric batch, this machine eliminates the need for manual screw handling, significantly reducing fatigue and assembly time. Lightweight, ergonomic, and highly reliable, it is the ideal industrial tool for manufacturers looking to enhance production efficiency and maintain consistent fastening quality across diverse work stations.
Technical Specifications & Performance
| Specification | |
| Machine material type | Sheet metal + baking paint |
| Power Supply | 220V/110V AC, 50/60 HZ, Rated power: DC24V |
| Screw lead-in way | Air blowing type (Meet L＞1.3D) |
| Screw storage capacity | 500-3000pcs (depending on the detailed screw size) |
| Feeding speed | 60-120pcs/min (depending on the detailed screw size) |
| Hose length | 2.3m (other sizes can be customized) |
| Screw out mode | Double click the electric batch or press the single section button of the feeder.Electric batch reverse without screw out. |
| Screw material | Unlimited (Note: Stainless steel screws need to be customized and only can lock the surface holes.) |
| Screw thread | Unlimited |
| Screw size | M2.0 to M5.0 (screw length must be within 20mm.) |
| Screw cap size | 3.0~8.0mm. Cap diameter within ±0.15mm，length difference with 4mm can share the same clamp.Special screw clamp needs to be customized. |
| Machine dimension | L410*W163*H266.5 (mm) |
| Weight | 13KG |
Why Choose Kelanda for Handheld Screw Locking?
Choosing Kelanda means investing in proven industrial reliability. We understand that manual assembly can be the bottleneck in your production line. Here is why our handheld screw locking solutions are trusted by manufacturers worldwide:
- Efficiency at Your Fingertips: Our automatic feeding system delivers screws at a high speed (60-120pcs/min), allowing operators to focus on the fastening task rather than searching for hardware.
- Consistent Quality: With stable torque and professional electric batch controls, you eliminate common manual errors such as floating or stripped screws, ensuring 100% assembly quality.
- Ergonomic Design: Engineered for long-term use, the machine is lightweight and ergonomic, reducing operator fatigue during intensive assembly shifts.
- Universal Compatibility: Our machines support a wide range of screw sizes (M2.0-M5.0) and materials, making them a versatile asset for high-mix production environments.
- Cost-Effective Scalability: We provide a low-entry-cost automation solution that delivers a fast return on investment by significantly increasing hourly throughput.
- Dedicated Support: From setup guidance to maintenance tips, our team provides full-cycle technical support to ensure your assembly line remains optimized.
FAQ
Does this machine work with all types of screws?
It supports most standard thread types and sizes between M2.0 and M5.0. Stainless steel screws may require custom configuration
How fast is the screw feeding speed?
The system can feed between 60 to 120 screws per minute, depending on the screw size and specific application requirements.
Is it portable enough for different workstations?
Yes, the machine is compact (L410W163H266.5mm) and weighs only 13kg, making it highly portable for various assembly areas.
Can I customize the hose length?
The standard hose length is 2.3m, but we can customize the size based on your factory’s specific layout needs.
