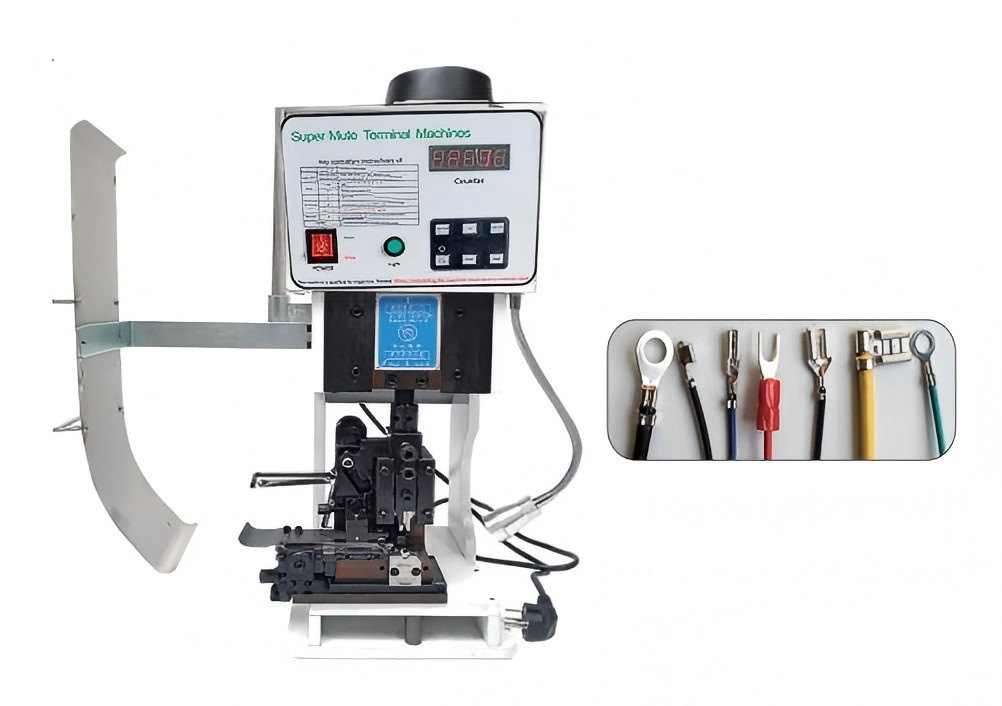

Mute Terminal Crimping Machine for High-Efficiency Assembly
Our mute terminal crimping machine is engineered for high-precision wire processing in electronics assembly. Equipped with an advanced frequency converter and high-precision sensors, this terminal crimping equipment provides stable, accurate feeding and consistent crimping force. Designed for energy efficiency and low-noise operation, it supports various terminals through quick-change mold systems, making it the ideal choice for manufacturers requiring high throughput and reliable wire harness assembly
Features:
- Suit for different terminals by changing different molds like OTP ,2000# mold. Easy to change mold.
- Adopt advance frequency converter and frequency conversion motor control.
- Equipped with high precision importing proximity switch and reducer, support quick and accurate action, accurate feeding and high efficiency.
- With the Environmental protection, no noise, low power consumption, wider height adjustment range, higher adjustment accuracy, save the time of crimping height adjustment.
Key Technical Advantages
Low Noise, High Efficiency: Our specialized mute structure reduces decibel output during operation while maintaining high-speed throughput.
Universal Mold Compatibility: Supports quick changes for OTP, 2000#, and various customized terminal molds.
Precision Control: High-precision proximity switches and reducers ensure accurate terminal feeding and minimal material waste.
Technical Specifications
| Model | KLD-1.5T | KLD-2.0T | KLD-3.0T | KLD-4.0T |
| Crimping capacity | 1.5Ton | 2.0Ton | 3.0Ton | 4.0Ton |
| Range | 30mm(Can be customized with 40mm) | |||
| Motor power | 0.55KW | 0.75KW | 1.10KW | 1.50KW |
| Work efficiency | 3500 times/H | 3500 times/H | 3000 times/H | 2000 times/H |
| Power | AC220V/110V, 50/60Hz | |||
| Weight | 38KG | 47KG | 56KG | 72KG |
| Dimension(mm) | 215*230*600 | 215*245*640 | 240*270*700 | 260*305*740 |
FAQ
Does the “mute” feature affect the machine’s crimping force?
No. The mute design focuses on noise reduction through precision mechanics and vibration damping, ensuring the same high-tonnage crimping force as standard machines.
Is it easy to change molds for different terminals?
Yes, the system is designed for quick mold changes (like OTP or 2000# molds), minimizing downtime during production batch swaps.
What wire range can this terminal crimping machine process
It supports a wide range of wire gauges; please share your specific AWG/mm² requirements for a tailored configuration.
