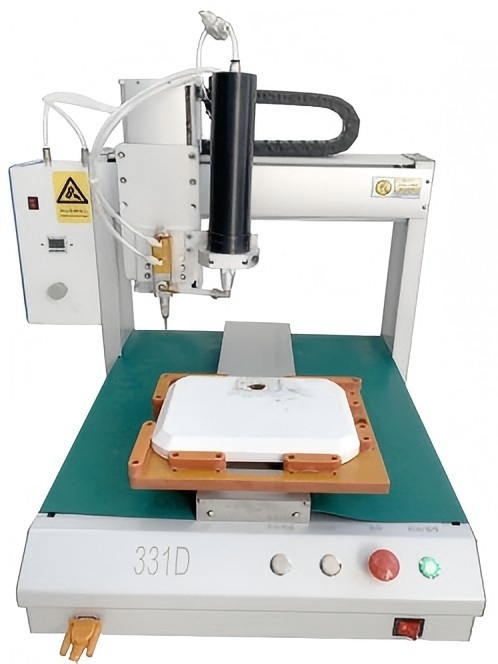

Desktop 3-Axes Glue Dispensing Machine
Our 3-axis desktop glue dispensing machine is designed for high-precision adhesive application in electronics and industrial assembly. Featuring true 3D motion control and easy-to-use programming, this automated dispensing system significantly reduces material waste and labor costs. Whether you are performing PCB bonding, sealing, or potting, our equipment integrates seamlessly into your production line to ensure faster cycle times and consistent quality
Key Features of Our 3-Axis Dispensing System:
- Easier setup and programming.
- True 3D motion control.
- Reduce production, materials and costs.
- More faster loop and batch times.
- Can be seamlessly integrated into any production operation.
Technical Specifications & Workflow
| Model | KLD-331D | KLD-441D | KLD-551D | KLD-661D |
| Max working area | 300*300*100(mm) | 400*400*100(mm) | 500*500*100(mm) | 600*600*100(mm) |
| Dimension(mm) | L516*W585*H645 | L616*W685*H645 | L716*W785*H645 | L816*W885*H645 |
| Weight(KG) | 35 | 40 | 50 | 55 |
| Programming way | Teach programming or DXF graphic mapping | |||
| Minimum discharge | 0.01ml | |||
| Payload | XY Axis 6 KG, Z Axis 3 KG(Synchronous wheel) / XY Axis 10 KG, Z Axis 6 KG(Lead screw) | |||
| Max motion speed | 0-500mm/s(Can be customized) | |||
| Repeated precision | ±0.02mm | |||
| Program memory | Support 999 groups processing file(Can be Computer extensible) | |||
| Transmission mode | Japan Shino motor + synchronous belt + Taiwan silver guide rail (customizable lead screw) | |||
| Power | AC220V,50-60Hz, 350W | |||
Video Applications of Automated Glue Dispensing
FAQ
Can this 3-axis dispenser handle different types of adhesives?
Yes, it supports various materials including epoxy, silicone, UV glue, and solder paste, with adjustable pressure and speed.
Is the machine easy to program for complex patterns?
Absolutely. It supports both “teach programming” and DXF graphic mapping, allowing for precise 3D motion paths.
How does this system reduce production costs?
By automating the dispensing process, it minimizes adhesive waste, reduces human error, and speeds up batch cycles compared to manual operation.
