SMD Carrier Tapes for Tape and Reel Packaging
Our SMD carrier tapes are professional-grade packaging solutions designed for high-speed automated SMT assembly. Engineered for secure tape and reel packaging, our tapes support consistent feeding for inductors, connectors, capacitors, and LEDs. We provide full customization, including conductive (anti-static) or non-conductive materials, deep pocket forming up to 35mm, and compliance with the EIA-481 industry standard.

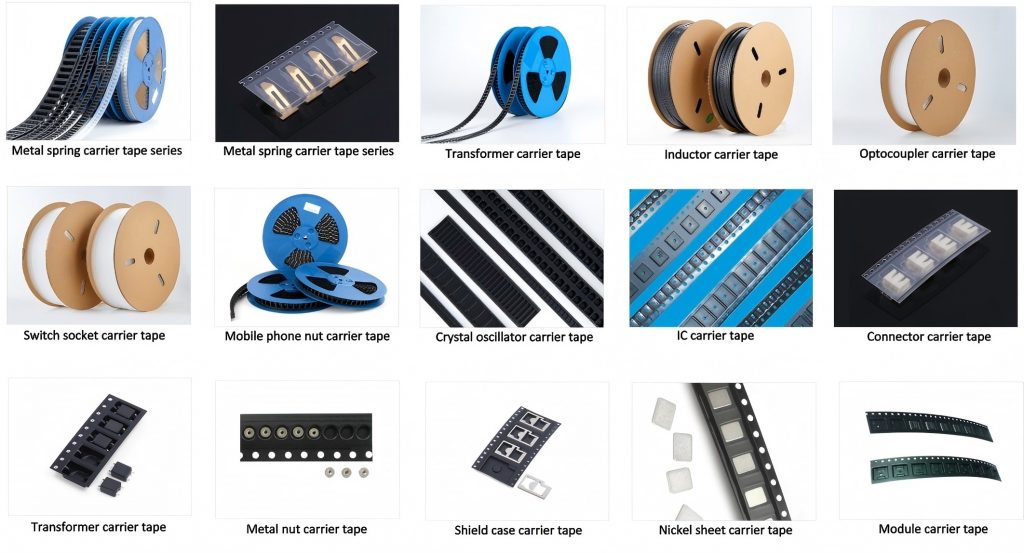

SMD Carrier Tape types
Features:
- Width range : 8-88mm.
- Material type:TPS, PET, PC materials, available in conductive (anti-static) and non- conductive (non- anti-static) materials.
- Color: Black/Transparent.
- There are ready-made molds with a variety of conventional and general-purpose components, and suitable carrier tapes can be designed according to the work piece samples provided by customers. The dimensions are excellent and comply with the EIA-481 standard.
- Can process and form various carrier tapes, including common type and anti-static type. We design molds according to customers’ products. Our forming machines can achieve a depth of up to 35MM. The forming process has been accumulated over many years and has become quite mature. The quality of the products produced can fully meet the requirements of customers and can be widely applied to inductors, connectors, anodes, capacitors, switches,fuses ,transformers, Shielding covers, leds and various other surface mount electronic components.

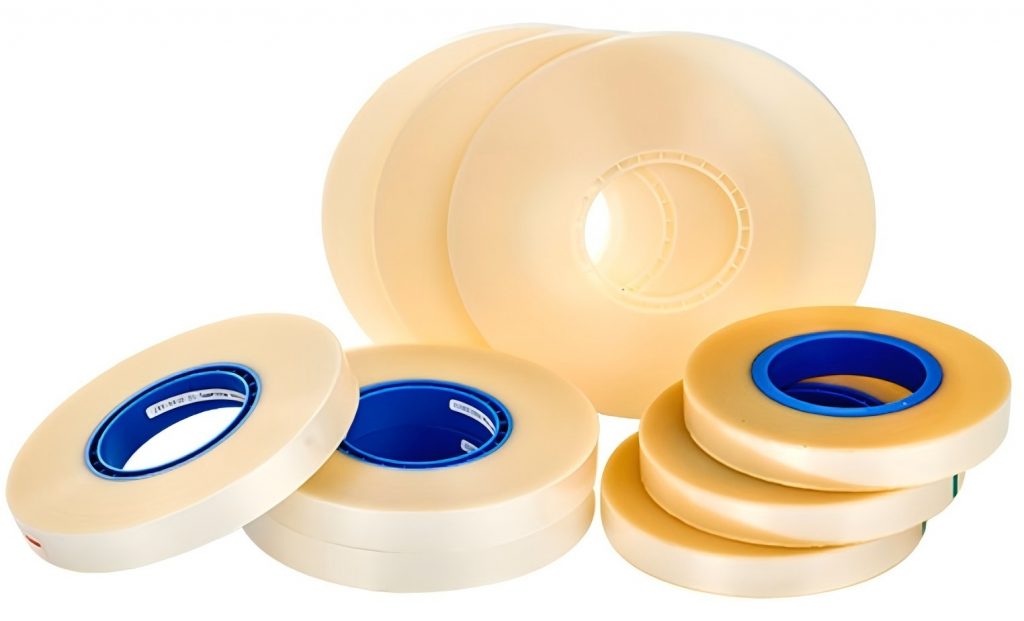

Heat Seailing cover tape & Rubber Disc
- Features:
- 1. Suitable for sealing PC,PS and PET carrier tapes. 2.Double-sided anti-static ＜10 10Ω/CM .Good adhesion, stable peeling and no residue.
- 3.Type: Transparent and foggy.
- 4. Width: 5.4/9.3/13.3/21.3/25.5/37.5/49.5/65.5/81.5 mm etc.,support customization..
- 5.Length: 300/480/1500(Ingot )/3000(Ingot ) etc.,support customization.
| Pairing table | |||||||||
| Carrier tape width(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 |
| Cover tape width(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 |
| Rubber Disc | |
| Size | 7 inch(Diameter 178mm),13 inch(Diameter 330mm), 15 inch(Diameter 380mm),22 inch(Diameter 560mm) |
| Central spindle | 60/100/150/180 mm |
| Width | 8~72mm (Can be combined and matched as needed) |
| Material type | PS/PET |
| Color | Black/Blue/White/Transparent |
Customization & Technical Compatibility
针对 “Customization & Technical Compatibility” 这一板块，这是将“标准品买家”转化为“长期 OEM/ODM 合作伙伴”的核心区域。在载带（Carrier Tape）行业，客户最担心的是“定制模具的准确性”以及“载带与贴片机送料器的兼容性”。
你可以直接复制以下英文文案填充到该 H2 下方，这段内容专为 SEO 与 B2B 转化设计：
Customization & Technical Compatibility
At Kelanda, we understand that every SMT component has unique geometric requirements. Whether you are dealing with standard passive components or complex, irregularly shaped ICs, our customization service ensures your carrier tapes provide a perfect fit and seamless feeding performance.
- Customized Pocket Design: We specialize in professional mold design tailored to your specific component samples or 3D drawings. Our advanced forming machines support pocket depths of up to 35mm, ensuring a precise fit that prevents component “tumble” or “flip” during high-speed feeding.
- Material Versatility: We offer a wide range of carrier tape materials, including PS (Polystyrene), PET, and PC (Polycarbonate). Depending on your requirements, we provide both conductive (anti-static/ESD) and non-conductive variants to ensure optimal protection for sensitive electronic parts.
- EIA-481 Compliance: All our customized carrier tapes are manufactured in strict accordance with the EIA-481 industry standard. This guarantees that our tapes are fully compatible with mainstream SMT placement machines and feeders, eliminating downtime caused by jamming or indexing errors.
- Comprehensive Tape & Reel Solutions: Beyond just the carrier tape, we offer complete technical support for Heat Sealing Cover Tapes and matching Rubber Discs (Reels). We can recommend the right cover tape adhesion levels to ensure your reels feed smoothly and peel consistently on your production line.
- Technical Compatibility Assessment: Unsure which material or pocket design is best for your application? Our technical team provides expert consultations. We evaluate your component dimensions, feeder compatibility, and storage requirements to design a packaging solution that maximizes your production yield and minimizes rework.
H2: Frequently Asked Questions (FAQ)
Are your SMD carrier tapes compliant with industry standards?
Yes, all our carrier tape dimensions and manufacturing processes strictly comply with the EIA-481 industry standard to ensure compatibility with SMT machines.
Do you offer anti-static (ESD) material options?
Yes, we provide both conductive (anti-static) and non-conductive material types (PS/PET) to protect sensitive electronic components.
Can you customize the pocket size for my specific components?
Absolutely. We design custom molds based on the workpiece samples you provide, supporting pocket depths of up to 35mm.
