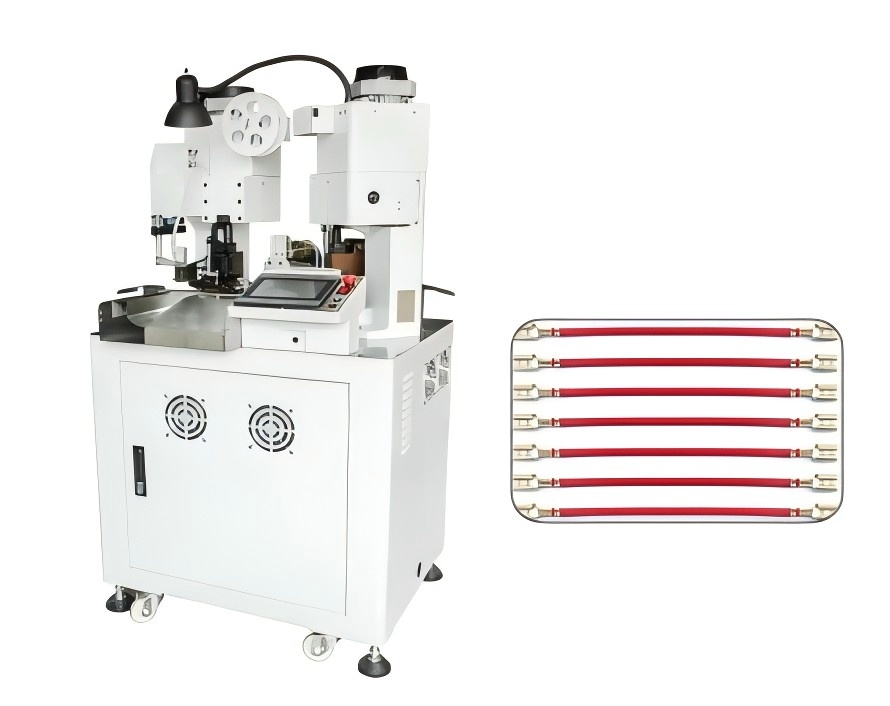

Wire Cutting, Stripping & Double Head Crimping Machine
Our wire cutting, stripping, and double head crimping machine is an all-in-one solution for high-speed wire harness assembly. This automatic wire processing machine handles single-wire cutting, precise stripping, and simultaneous double-head terminal crimping in a single pass. Designed for industrial efficiency, it supports various terminal types and cable specifications, delivering up to 4000 PCS/H. If you are looking for a reliable double head crimping machine to streamline your production line, this system offers the precision and consistency you need
Features:
- 1.Support the single wire cutting, stripping and double heads putting on the terminals in one machine.
- 2. The wire size out of the standard version can be customized.
Technical Specifications
| Applicable wire | AWG#30~AWG#16 | Measurement | 1000mm*800mm*1450mm |
| Weight | 350KG | Power supply | 220V, 50/60HZ |
| Stripping length | Head/End stripping | Cutting length | 50-9999mm |
| max 1~10mm | (Min 25mm customized) | ||
| Power | 2.5KW | Air source | 0.4~0.6Mpa |
| Cutting tolerance | 1mm+less cutting length*0.2% | Blade material | Swedish ASP60 powder high speed steel |
| Terminal pressure | 2.0T (Other customized) | Capacity | 4000 PCS/H(within 200m) |
| Display way | Color touching LED screen | Operation way | Automatic +manual |
| Screw guide | Taiwan HIWIN | Blade adjusting | Electric adjusting blade |
| Pneumatic spare parts | Original Air TAC | Detection project | terminal crimping, cable existing, cable tie knots, air source detecting etc. |
FAQ
Can this machine handle different wire gauges
Yes, the standard version supports AWG#30 to AWG#16, and we provide customization services for other wire sizes upon request.
What is the output capacity of this double head crimping machine?
It can process up to 4000 pieces per hour for wires within 200mm, significantly increasing assembly line throughput.
Are the crimping dies and tooling interchangeable?
Yes, the machine is designed for quick tool and die changes to accommodate different terminal types, making it ideal for high-mix production.
Does the system have error detection?
Yes, it includes automatic detection for terminal crimping quality, cable presence, and air source monitoring to ensure 100% production accuracy.
