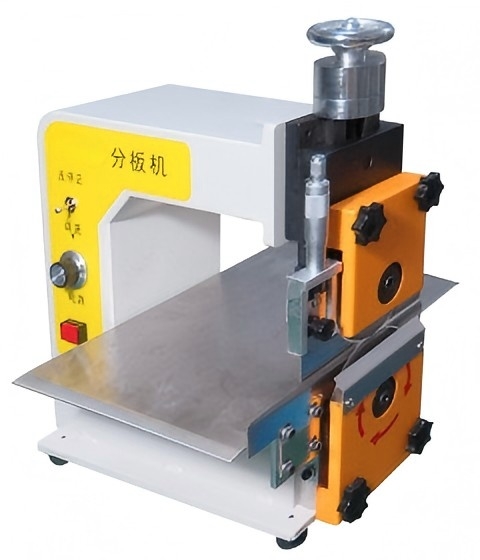

Mini V-CUT PCB Separator for Stress-Free Depaneling
Our Mini V-CUT PCB separator is an essential tool for high-precision electronics manufacturing. Specifically designed for V-groove PCB boards, this automatic PCB depaneling machine effectively eliminates mechanical stress during the cutting process, preventing solder joint cracking and component damage. With its adjustable upper guide and high-efficiency cutting speed (V max=200mm/s), it offers a compact, safe, and reliable solution for manufacturers looking to improve their assembly quality
Key Features & Technical Advantages
- 1. Suit for the PCB boards with V groove
- 2. Machine segmentation reduces stress and prevents solder joints from cracking.
- 3. Manually adjust the height of the upper guide piece to solve the problem of different V-CUT depth.
- 4. High efficiency：V max=200mm/s，and the speed is adjustable.
- 5. High accuracy, easy maintenance and high safety.
- 6. The machine is small and easy to operate.
- 7. Upper tool holder adjustment range：0~15mm.
Why Choose a V-CUT PCB Separator?
Choosing a V-CUT PCB separator is a strategic decision to enhance your PCB assembly quality and production consistency. Unlike manual breaking or generic shearing, our automatic PCB depaneling machine offers several professional advantages:
- Stress-Free Depaneling: Manual breaking or traditional shearing often introduces mechanical stress, which can lead to micro-cracks in solder joints and damage to sensitive components near the cutting line. Our V-CUT system ensures a clean separation, effectively protecting your PCBA integrity.
- Superior Edge Quality: The V-cut mechanism provides a clean, burr-free edge, ensuring that your finished PCB panels meet high-standard aesthetic and functional requirements without the need for additional grinding or finishing.
- Increased Production Efficiency: With a cutting speed of up to 200mm/s, this machine significantly outperforms manual depaneling, helping you meet high-volume production targets while maintaining strict quality control.
- High Precision and Consistency: The adjustable upper guide piece allows for precise depth control, ensuring that every board is separated with the same consistent quality, regardless of minor variations in board thickness.
- Compact and Ergonomic Design: Designed specifically for efficiency in small-to-mid-sized assembly lines, this machine is compact, easy to operate, and requires minimal floor space, making it a highly cost-effective investment for professional electronics manufacturers.
Technical Specifications
| Model | KLD-908 Standard machine |
| Limit slider | No(Limit segmentation by V slot on the substrate) |
| Platform size | L300*W240 (mm) |
| Applicable PCB thickness | 0.6mm~3.0mm |
| Dimension | L350*W300*H350 (mm) |
| Power supply | AC220V, 50Hz, 40W |
| Weight | 30KG |
FAQ
Is this mini separator suitable for all types of PCB boards?
It is specially designed for PCB boards with V-grooves. Please ensure your board design incorporates V-cutting lines for optimal results.
How do you adjust the cutting depth?
The machine features a manually adjustable upper guide piece, allowing for precise height settings (0~15mm) to accommodate different V-CUT depths.
Does this machine damage sensitive components on the PCB?
No. Its stress-free mechanical segmentation is specifically designed to minimize board bending, effectively preventing solder joint cracks.
