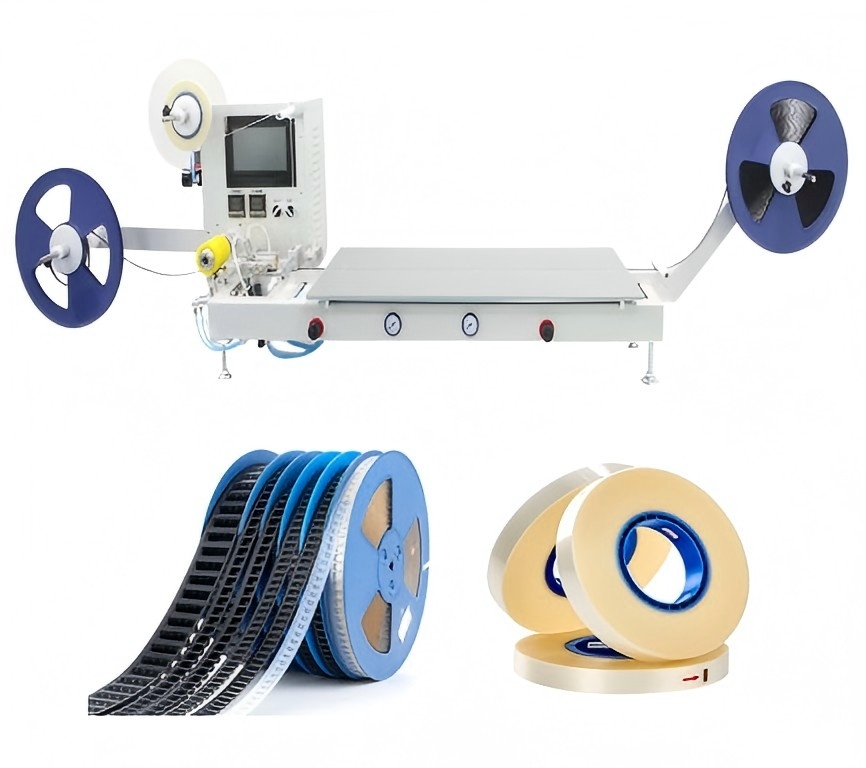

Semi-Automatic SMD Taping Machine
Our semi-automatic SMD taping machine is a high-performance solution designed for professional SMT component packaging. It allows for seamless packing of electronic components into carrier tapes using either heat-sealing or self-adhesive methods. Supporting standard component widths from 8mm to 88mm, this tape and reel packaging machine is built for high-mix production environments, ensuring consistent tension control and precise sealing quality for your electronic assembly line
Introduction：
The SMD taping machine is used to pack components into reel tapes by heat-sealing or self-adhensive method,component width from 8~88mm for standard type,can also make bigger size according to request.
Features:
1. Widely used for various SMD components packaging braid.
- 2.The track width can be freely adjusted within the range of 8mm-104mm.
- The track is used to clamp the material belt cavity, control the material belt stably, and the adjustment is simple.
- Simply clip all packing tape plates and paper plates in accordance with EIA-481A standard.
Key Features & Technical Advantages
Our Semi-Automatic SMD Taping Machine is engineered for precision and ease of use, bridging the gap between manual operations and fully automated production lines.
- Precision Tension Control: Equipped with a sophisticated tension management system, our machine ensures that the carrier tape and cover tape remain perfectly aligned throughout the sealing process, preventing tape deformation or loose packaging.
- Versatile Compatibility (8mm–88mm): The system is highly adaptable, supporting a wide range of component carrier tape widths. Whether you are packaging small passive components or large ICs, the adjustable track width ensures a perfect fit.
- Dual Sealing Methods: Designed for maximum production flexibility, our machine supports both heat-sealing (for standard PET/PS tapes) and self-adhesive cover tape methods, allowing you to choose the best sealing solution for your specific electronic components.
- Intuitive Operation: Featuring an easy-to-read control panel and simple mechanical adjustments, operators can set up new production runs in minutes. This minimizes changeover time and allows your team to handle high-mix, low-volume production tasks efficiently.
- Stable Sealing Quality: The integrated heat-sealing head provides consistent temperature and pressure, ensuring strong, airtight seals that comply with industry standards for humidity and static protection.
Technical Specifications & Workflow
| Item | Parameters |
| Applicable materials | Package of SMD components, 8-104mm bandwidth carrier band |
| Machine Capacity | Depending on component shape and manual loading speed (Max speed 400m/h) |
| Reel specification | 7″/ 13″/ 22″ plastic or paper trays |
| Air source | 0 . 3~0 . 6Mpa/60L/Min |
| Heating temperature | 110℃- 180℃ (Depending on the material of the cover tape and the requirement for peel strength value） |
| Operating Voltage | 110V/220V AC.60/50Hz |
| Machine Size | L2200*W580*H660(mm) |
| Net weight | 40KG |
| Other requirements | Customized track length and CCD detection function according to customer requirements |
Why Choose Kelanda for SMD Packaging?
Choosing Kelanda means partnering with a manufacturer that prioritizes industrial reliability and production efficiency. We provide more than just equipment; we deliver a complete SMT packaging solution tailored to your factory’s needs.
- Tailored Tooling & Customization: We understand that non-standard components often require custom solutions. Our technical team specializes in developing custom track modules and fixtures to ensure your unique components are packaged safely and securely.
- Built for Durability: Constructed with industrial-grade materials, our taping machines are designed for continuous, high-performance operation. We focus on mechanical stability to ensure that your packaging quality remains consistent over long-term use.
- Optimized for Yield and Quality: Our packaging solutions help you reduce manual handling errors, minimize component damage, and ensure that your tapes are ready for high-speed automated placement on your SMT line.
- Expert Technical Support: When you choose Kelanda, you gain access to our team of application experts. From initial setup and operator training to troubleshooting and maintenance advice, we are committed to ensuring your packaging workflow stays optimized for your production targets.
- Cost-Effective Scalability: Our semi-automatic systems offer professional-grade performance at a competitive price, making them the ideal choice for prototyping labs, medium-sized assembly houses, or production lines looking to scale their SMT assembly capabilities.
Frequently Asked Questions (FAQ)
Does this machine support both heat-sealing and self-adhesive tapes?
Yes, our taping machine is compatible with both heat-sealing and self-adhesive cover tapes to provide flexibility for different packaging requirements.
Can it handle component widths beyond the standard 8-88mm?
Yes, while 8-88mm is the standard range, we can customize the machine and tooling to accommodate larger or non-standard component sizes upon request.
How does this machine improve SMT production efficiency?
By automating the tape and reel process, it ensures consistent component alignment and uniform sealing pressure, significantly reducing manual labor and packaging defects.
