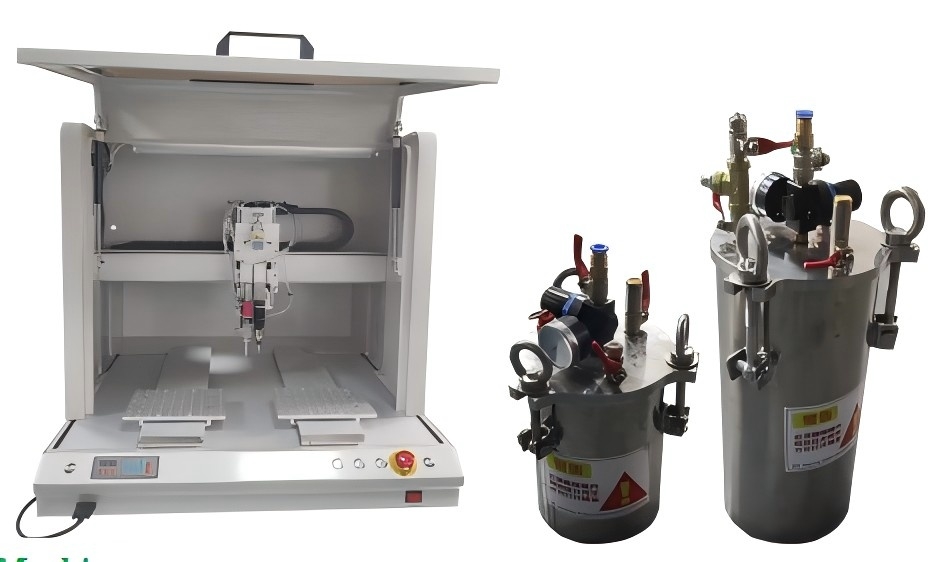

PCBA Coating Machine with Dual Working Platforms
The PCBA coating machine with dual working platforms is designed to provide high-efficiency conformal coating for electronics manufacturing. By utilizing a dual-platform system, this machine enables continuous production—allowing the operator to load/unload on one side while the dispensing head applies the protective coating on the other. At Kelanda, our PCBA coating equipment ensures precise volume control and uniform coverage, protecting your PCB assemblies from moisture, dust, and environmental hazards. Share your PCB dimensions, coating material type, and target cycle time with our engineering team for a custom configuration.
Features:
- Stepper motor and synchronous belt drive control mode, high rigidity and smooth operation.
- High speed and high precision, work efficiency greatly improved.
- Single machine can be operated.Humanized teaching box program setting, easy to get started.
- Support the function of drawing dots, lines, arcs, circles, irregular curves continuous tween input program and so on.
- Random point, line, surface, arc and other irregular curve continuous coating function.
| Model | KLD-6441-2 |
| Dimension | L870*W750*H820 (mm) (including cover size) |
| Machine weight | 95KG |
| Single side solidified size | L150*W300 (mm) |
| Single side supporting putting the max PCB board size | L260*W360(mm) |
| Drive mode | Stepper motor+synchronous belt control |
| Motor system | Stepping precision motor |
| Dispensing value type | One high speed dispensing valve + One precision atomization valve (standard) |
| Barrel volume | One 5L pressure barrel+ One 2L cleaning barrel (standard) |
| Guide rail | Imported brand, Spindle with double guide driving |
| Cylinder | Famous driving cylinder brand to control dispensing value up and down |
| Repeated positioning accuracy | ±0.02mm |
| Moving speed | X/Y1/Y2 with the max speed of 500mm/s, Z with the max speed of 300mm/s |
| Processing platform | Double Y working platforms |
| Teach mode | Teaching box, programs can be exported to use circularly. |
| Control system | Develop the moving control system by our own company |
| Input power supply | AC220V, 50Hz, 500W |
Why Choose a Dual-Platform PCBA Coating System?
Choosing a dual-platform PCBA coating system over a single-platform model is a strategic investment in production efficiency and long-term ROI. Here is why our dual-platform configuration is the preferred choice for high-mix and high-volume electronics assembly:
- Eliminate Machine Idle Time: In a single-platform setup, the coating head remains idle while the operator loads or unloads the PCB. With our dual-platform design, the machine operates continuously; while one platform is being coated, the operator safely prepares the next board on the other, ensuring the dispensing head stays active.
- Maximize Throughput: By overlapping the loading/unloading time with the active coating cycle, you significantly increase the number of boards processed per hour. This is essential for meeting tight production schedules and improving overall line takt time.
- Streamlined Workflow for High-Mix Production: If your production line involves frequent batch changes, dual platforms allow for easier fixture swapping and quick setup, reducing downtime and keeping your SMT line running smoothly.
- Enhanced Operator Safety and Ergonomics: Dual platforms allow the operator to work on one side at a safe distance from the coating area, minimizing exposure to coating fumes and simplifying the board handling process.
- Scalable and Modular Integration: Our systems are designed to integrate seamlessly into existing production lines, ensuring that your transition to high-efficiency selective coating is both scalable and future-proof.
FAQ
Can this machine handle different types of conformal coatings?
Yes, the system is compatible with various coatings including acrylics, silicones, and UV-curable materials, with adjustable pressure and flow settings.
How does the dual-platform system improve throughput?
It eliminates machine idle time; while the coating head processes one PCB, the operator can safely swap parts on the second platform.
Is this machine integrated with standard SMT lines?
Yes, we offer modular integration options to connect seamlessly with conveyors, curing ovens, and existing production MES systems.
