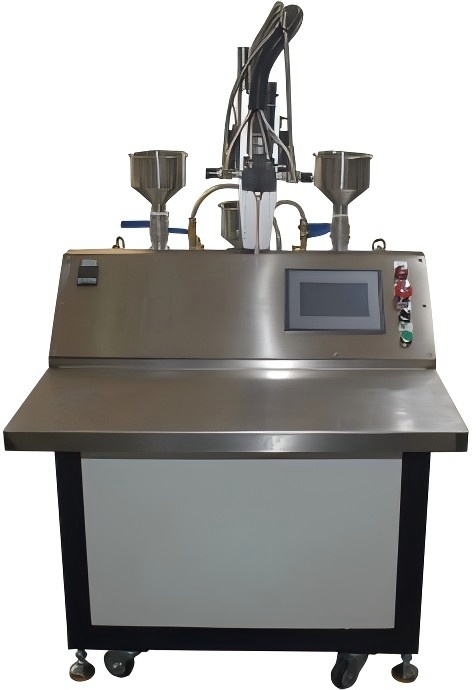

Semi-Automatic AB Glue Potting Machine
Our semi-automatic AB glue potting machine is a flexible, cost-effective solution designed for multi-scenario applications of conventional two-component adhesives. Featuring automatic precision matching, mixing, and heating, this potting equipment is widely used in epoxy resin, polyurethane (PU) glue, and silicone potting processes. Whether you require manual gluing or integrated automated dispensing, our machine ensures consistent quality and improved production throughput.
Key Features & Technical Advantages:
Semi-automatic glue potting machine is a flexible and low-cost equipment designed specifically for the multi-scenario application of conventional AB two-component glue on the market. The equipment has automatic precision matching glue, automatic mixing glue, automatic cleaning, automatic heating and automatic mixing functions, and is widely used in epoxy resin glue, polyurethane PU glue, and silicone sizing process. The device also has some basic extensibility features, such as hand-held gluing, product rotation gluing, multiple gluing and other automated on-line work.
Why Choose This AB Glue Potting Solution?
Choosing our semi-automatic AB glue potting machine is a strategic investment in assembly quality and production consistency. Unlike manual potting processes, our solution provides a professional approach to two-component adhesive application:
- Superior Mixing Consistency: Manual mixing often leads to uneven ratios, resulting in incomplete curing or soft spots in the potting material. Our system features precision metering and automated mixing, ensuring a consistent 1:1 to 10:1 ratio for every cycle, which guarantees reliable bonding and protection.
- Reduced Material Waste: Traditional manual dispensing is prone to over-filling or dripping, leading to significant adhesive waste. Our automatic suction and precision valve systems provide clean, controlled dispensing, minimizing adhesive residue and lowering your total cost of ownership.
- Improved Production Throughput: By automating the metering and dispensing steps, you can significantly reduce the time required per unit. This solution enables a streamlined workflow, allowing your operators to focus on high-value assembly tasks while the machine maintains a steady, reliable output.
- Enhanced Protection for Sensitive Electronics: Precise potting provides a uniform protective layer that shields your PCB assemblies from moisture, dust, thermal shock, and vibration. Our machine ensures that this critical protection is applied accurately to every component, reducing the risk of field failures.
- Flexible and Scalable Configuration: Designed for both standalone operation and integration into semi-automated production lines, this machine adapts to your specific product geometry. With adjustable settings for dispensing volume and speed, it is a versatile tool for high-mix production environments.
Technical Specifications & Workflow
| Technical items | Technical Parameters |
| Glue mixing proportion | From 1:1-10:1 adjustable |
| Potting speed | 1-10g Adjustable (existing difference for different glue) |
| Potting accuracy | Glue amount ±3%, Proportion±3%. |
| Input air pressure range | 0.4-0.8Mpa |
| Head sealing pressure | MAX≤2.6Mpa |
| Gum volume water viscosity | ≤8000CPS |
| Operation mode | Auto, Manual |
| Glue proportion control | Pump metering |
| Program mode | Teaching programming |
| Electronic control system | Control screen (program setting, modifying, storage etc.) |
| Glue cut-off system | A, B adhesive independent instant automatic suction system |
| Mixing stirring system | Static High speed servo dynamic mixing device |
| A Pump | Screw pump/gear pump as option (Price will be different.) |
| B Pump | Screw pump/gear pump as option (Price will be different.) |
| A barrel capacity | 20L/30L/50L option(Standard with 20L) |
| B barrel capacity | 20L/30L/50L option(Standard with 20L) |
| AB mixing system | Step pulse mixing system,stirring the barrel. (This function is optional and charge additionally.) |
| AB heating system | Heating constant temperature system (adjustable temperature) . (This function is optional and charge additionally.) |
| Deaeration function | This function is optional and charge additionally |
| Cleaning barrel capacity | 5L |
| Machine Dimension(mm) | L850*W1000*H1450 |
| Rated power supply | 220V 50Hz 950W |
FAQ
Is this machine compatible with different types of glues?
Yes, it is widely compatible with epoxy resin, PU glue, silicone, and other common two-component adhesives on the market.
Can the machine handle automated on-line work?
Yes, it features extensibility for automated on-line workflows, including product rotation and multi-point dispensing setups.
How does the automatic cleaning function work?
The system includes an automated cleaning cycle to prevent glue curing in the mixing head, significantly reducing maintenance downtime.
