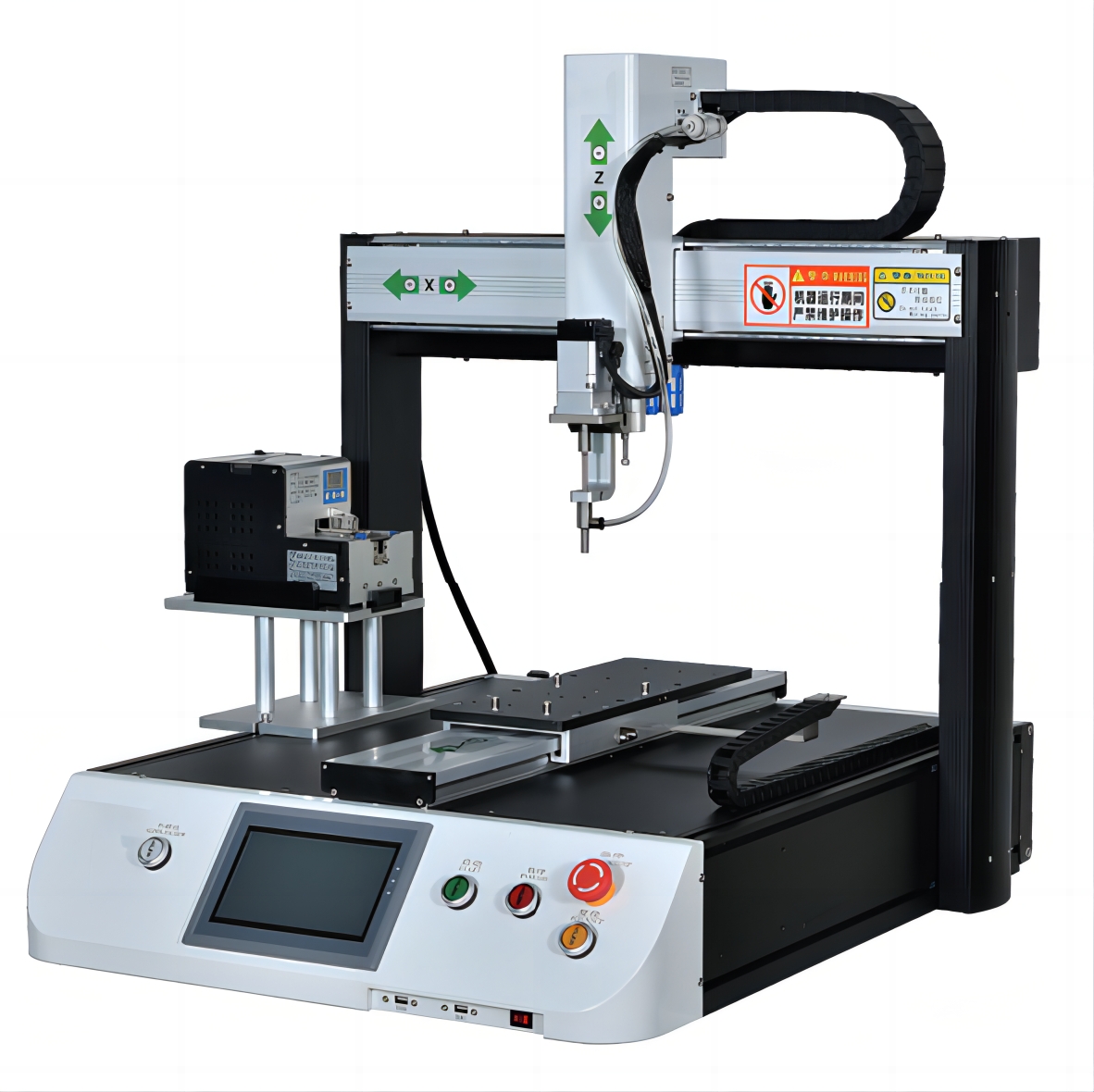

3-Axes Desktop Screw Locking Machine
Our 3-axes desktop screw locking machine is engineered for high-precision electronics and industrial assembly. Featuring a robust double-guide structure and high-performance servo electric batch, this automated screw driving system provides precise torque control and consistent locking quality. Equipped with intelligent detection, it identifies missing screws, floating screws, and sliding teeth in real-time, making it the ideal solution for high-throughput production lines.
Key Advantages of Our 3-Axis Screw Locking Robot
1. Versatile Tooling for Quick Changeoveof the mold and accessories can be used for other products.
2. Double guide structure, wear-resistant and long life.
3. Standard servo electric batch, longer life, torque adjustment and speed are more convenient and flexible.
4. With intelligent detection function, it can detect missing lock, symbol lock, sliding tooth etc..
5. Strong versatility, flexible operation, applicable to a variety of product screws to pay.
6. The device is compact in appearance and can be easily put into the production line and it’s equipped with a front and rear function.
7. Drag and teach, and it’s more convenient and convenient to change the line.
Technical Specifications & Capacity
| Models | KLD-341A1 | KLD-551A1 |
| Machine dimension (L*W*H) (mm) | 680*630*815 | 780*830*815 |
| Stroke of each axis (X*Y*Z) (mm) | 300*400*100 | 500*500*100 |
| Max locking product size (L*H) (mm) | 260*360 | 450*450 |
| Machine Weight (KG) | 70 | 85 |
| Drive mode | Closed loop step or servo | |
| Positioning accuracy | ±0.02mm | |
| Control system | Motion control card or single chip | |
| Screw conveyor | Suction | |
| Programming mode | Teach or map | |
| Locking time | 1~1.5S/PCS (screw) | |
| Programmer group storage qty | 1000 groups | |
| Communication interface | USB | |
| Power supply | AC220V/110V, 50/60Hz | |
| Power | 600W | |
| Air source (MPA) | 0.4~0.6 | |
| Electric batch | 1 | |
Frequently Asked Questions (FAQ)
Can this machine handle different types of screws?
Yes, the system supports various screw types, and fixtures can be easily customized to fit your specific product geometry.
Does it have an error detection function?
Yes, our screw locking robot automatically detects missing screws, floating screws, and sliding teeth to ensure 100% assembly quality.
Is it easy to integrate into an existing production line?
Its compact appearance and flexible programming allow it to be easily mounted into standard SMT or assembly lines.
