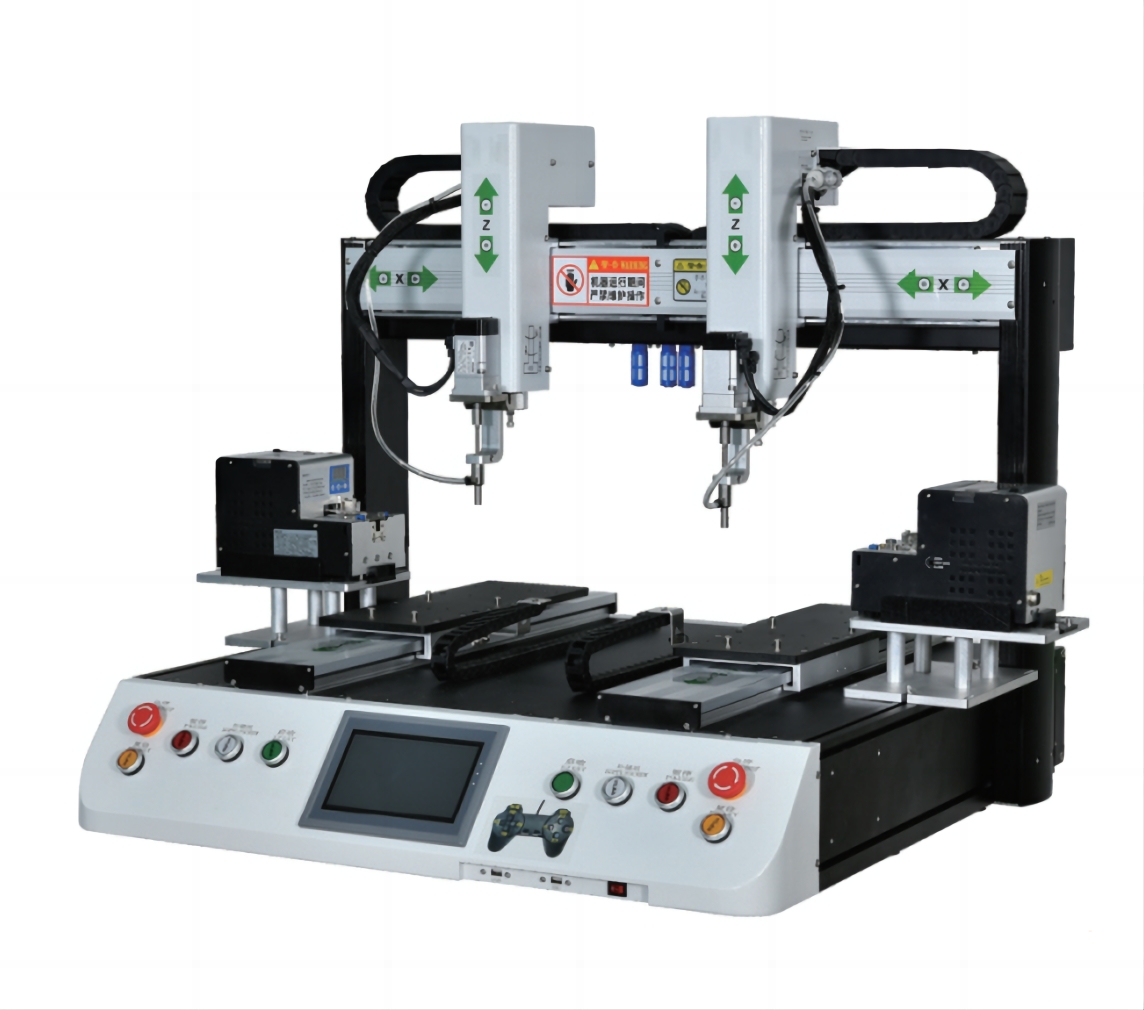

6 Axes Desktop Screw Locking Machine (Dual Head & Dual Platform
The 6 Axes Desktop Screw Locking Machine is an advanced dual-head, dual-platform assembly solution engineered for high-precision industrial fastening. Designed to maximize production throughput, this system allows for parallel operations where one side is being locked while the other is prepared, effectively eliminating idle time. With its intelligent detection capabilities and flexible configuration, this automatic screw locking robot is the ideal choice for manufacturers looking to achieve consistent torque, zero-error assembly, and superior efficiency on their production lines.
Features
1. Simple replacement of the mold and accessories can be used for other products.
2. Double guide structure, wear-resistant and long life.
3. Standard servo electric batch, longer life, torque adjustment and speed are more convenient and flexible.
4. With intelligent detection function, it can detect missing lock, symbol lock, sliding tooth etc..
5. Strong versatility, flexible operation, applicable to a variety of product screws to pay.
6. The device is compact in appearance and can be easily put into the production line .Drag and teach, and it’s more convenient and convenient to change the line.
7. Double working platforms, dual electric screwdrivers, and dual feeding machines for fast screwing locking.
Technical Specifications
| Models | KLD-351A2 | KLD-471A2 |
| Machine dimension (L*W*H) (mm) | 1136*862*815 | 1336*1068*815 |
| Stroke of each axis (X*Y*Z) (mm) | 300*500*100 | 400*700*100 |
| Max locking product size (L*H) (mm) | 230*450 | 330*650 |
| Machine Weight (KG) | 120 | 140 |
| Drive mode | Closed loop step + synchronous tape | |
| Positioning accuracy | ±0.02mm | |
| Control system | Motion control card or single chip | |
| Screw conveyor | Suction(according to detailed screws) | |
| Programming mode | Teach or map | |
| Locking time | 1~1.5S/PCS (Depending on the detailed screws) | |
| Programmer group storage qty | 1000 groups | |
| Communication interface | USB | |
| Power supply | AC220V | |
| Power | 600W | |
| Air source (MPA) | 0.4~0.6 | |
| Electric batch | 2 | |
Why Choose Kelanda for Screw Fastening Solutions?
In modern electronics and mechanical assembly, manual screw fastening is often the bottleneck that limits your production speed and quality consistency. Choosing Kelanda means partnering with an expert in automated fastening technology. Our solutions are designed to transform your production line into a high-efficiency, zero-error environment:
- High-Precision Consistency: Our automated systems feature advanced torque control and precise positioning ($\pm 0.02\text{mm}$), ensuring that every screw is fastened to the exact requirement. This eliminates the risks of stripped threads, floating screws, or over-tightened connections that often plague manual assembly.
- Intelligent Error Detection: Every Kelanda screw locking machine is equipped with smart sensors capable of detecting missing screws, sliding teeth, or incomplete locking in real-time. This proactive quality control prevents defective products from moving down the line, saving you significant rework costs.
- Optimized Throughput with Dual-System Design: Our dual-head and dual-platform configurations allow for parallel processing. While one platform is undergoing the fastening process, the other can be reloaded by the operator. This “seamless” workflow significantly reduces idle time and maximizes your hourly output.
- High Versatility & Adaptability: We understand that production requirements change. Our machines are built for quick changeovers; with simple mold and accessory replacements, you can easily adapt the system to handle different product models or screw specifications, making it perfect for high-mix production environments.
- Rugged Industrial Reliability: Built on a dual-guide structure with high-quality servo-driven electric batches, Kelanda systems are designed for $24/7$ industrial operation. They are compact, easy to integrate into existing production lines, and require minimal maintenance to keep your throughput high.
- Professional Technical Support: From initial integration and custom fixture design to operator training and remote troubleshooting, Kelanda provides comprehensive support. We work closely with you to ensure that your automated screw fastening workflow is fully optimized for your specific components.
Frequently Asked Questions (FAQ)
Can this machine be used for different product screws?
Yes, the machine offers strong versatility. Simple mold and accessory replacements allow it to be adapted for a wide variety of screw-fastening tasks.
What is the benefit of the dual-head, dual-platform design?
This configuration allows for parallel processing, where one side is being locked while the other side is being reloaded, significantly increasing production throughput.
Does it have error-detection capabilities?
Yes, the system includes an intelligent detection function to identify missing screws, floating screws, or sliding teeth, ensuring high-quality assembly.
