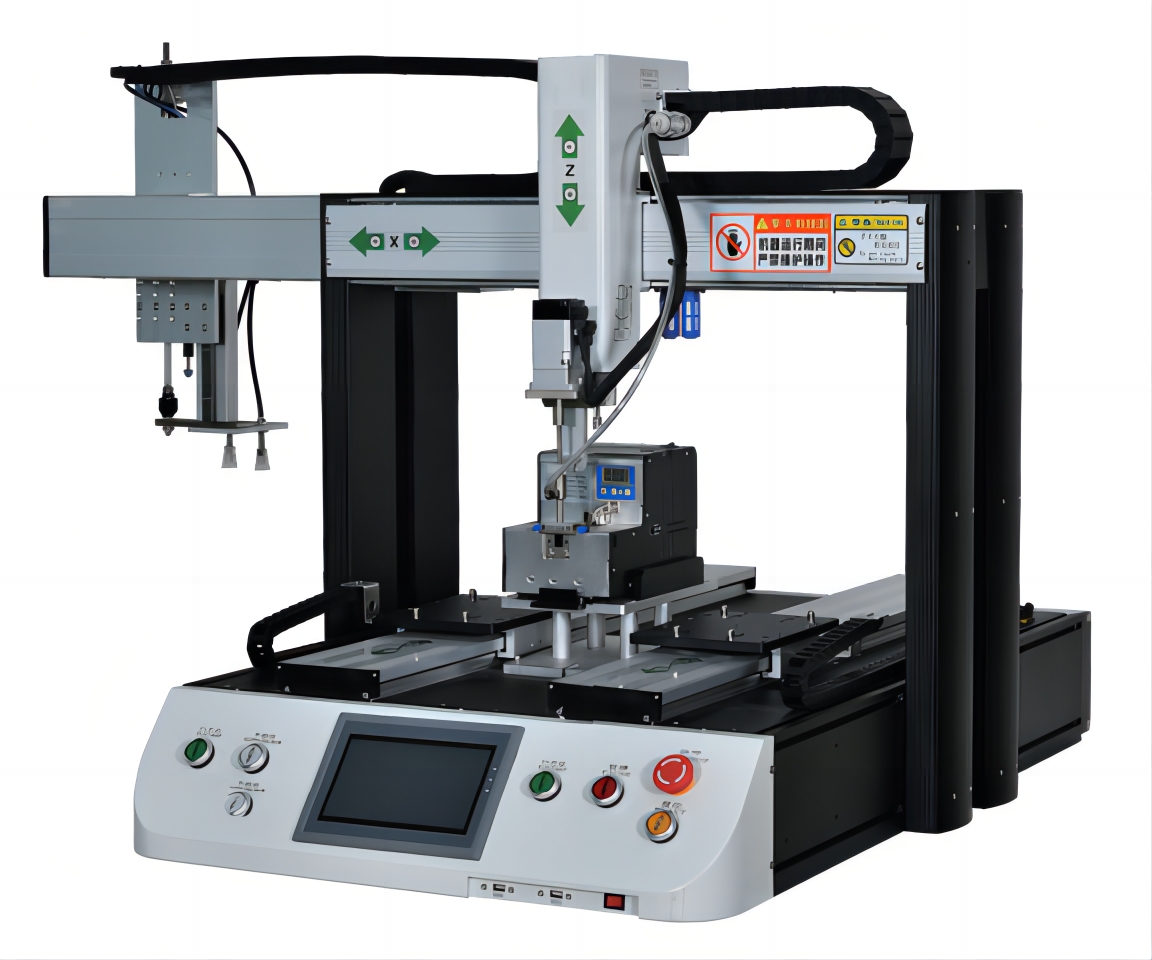

5 Axes Desktop Screw Locking Machine with Automatic Discharging
The 5 Axes Desktop Screw Locking Machine is a highly efficient, automated assembly solution designed for high-precision electronics and industrial manufacturing. Featuring dual working platforms and an advanced automatic discharging system, this robot streamlines your fastening workflow by enabling parallel operations that significantly reduce cycle time. With its ‘drag and teach’ programming and intelligent error-detection capabilities, it ensures zero-defect assembly while maintaining superior torque consistency, making it the ideal choice for modernizing your production line.

( Single head with dual working platforms)
(With automatic taking out fucntion)
Features:
1. Simple replacement of the mold and accessories can be used for other products.
2. Double guide structure, wear-resistant and long life.
3. Standard servo electric batch, longer life, torque adjustment and speed are more convenient and flexible.
4. With intelligent detection function, it can detect missing lock, symbol lock, sliding tooth etc..
5. Drag and teach, and it’s more convenient and convenient to change the line.
6. Versatile, flexible operation, suitable for multiple products screw fastening.
7. Mechanical hand for taking products out, manual loading and automatic discharging, efficiency is higher.
Technical Specifications
| Model | KLD-571B12 | KLD-791B12 |
| Dimension (L*W*H) (mm) | 752*1063*815 | 952*12632*815 |
| Stroke of each axis (X*Y*Z) (mm) | 500*700*100 | 700*900*100 |
| Max locking product size (L*H) (mm) | 160*260 | 260*400 |
| Machine Weight (KG) | 120 | 140 |
| Drive mode | Closed loop step or servo | |
| Positioning accuracy | ±0.02mm | |
| Control system | Motion control card or Single chip microcomputer | |
| Screw conveyor | Suction | |
| Programming mode | Teach or map | |
| Locking time | 1~1.5S/PCS (screw) | |
| Programmer group storage qty | 1000 groups | |
| Communication interface | USB | |
| Power supply | AC 220V | |
| Power | 600W | |
| Air source (MPA) | 0.4~0.6 | |
| Electric batch | 1 | |
Why Choose Kelanda for Screw Fastening?
Choosing Kelanda means investing in a more reliable, scalable, and error-free assembly process. Our 5 Axes Desktop Screw Locking Machine is engineered to solve the most common bottlenecks in screw fastening. Here is why manufacturers trust our solutions:
- Zero-Error Quality Control: Our system features intelligent detection to automatically identify missing screws, floating screws, or sliding teeth, effectively preventing defective products from proceeding to the next station.
- Increased Throughput with Dual Platforms: The dual working platform design allows for seamless parallel processing. While one platform is being locked, the operator can reload the other, maximizing machine utilization and hourly output.
- High-Precision Performance: Engineered with a 5-axis linkage system and pm 0.02mm positioning accuracy, our machine ensures that even the most complex screw arrangements are handled with perfect consistency.
- Flexible & Adaptable: With simple mold and accessory replacements, you can quickly switch between different product models, making our system perfect for high-mix, low-volume production environments.
- Intuitive “Drag & Teach” Programming: You don’t need complex coding skills to operate our robots. Our intuitive interface allows your operators to set up and adjust fastening paths in minutes, significantly lowering the learning curve.
- End-to-End Technical Support: Beyond providing top-tier hardware, Kelanda offers full-cycle support—from custom fixture design and initial installation to ongoing maintenance and troubleshooting—ensuring your assembly line remains optimized and productive.
H2: Frequently Asked Questions (FAQ)
Does this machine support different product types?
Yes, the system features a simple mold and accessory replacement design, making it highly versatile for various screw-fastening applications.
How does the automatic taking out function work?
The machine is equipped with an integrated mechanical hand that handles automatic discharging, significantly increasing efficiency compared to manual loading.
Is the system easy to program?
Absolutely. It features “drag and teach” functionality, allowing operators to quickly update assembly paths without complex coding.
