3 Axes Robot Arm With Max Payload 10KG And Working Radius 800mm
The 3 axes robot arm (Model: KLD310-800PTR) is a precision-engineered industrial robotic manipulator specifically designed for high-speed automated fastening. With a robust 10KG payload capacity and an 800mm working radius, this system streamlines complex screw locking tasks and material handling. Engineered for high-mix production environments, it provides the motion consistency and throughput required to modernize your assembly line and reduce operational labor costs.

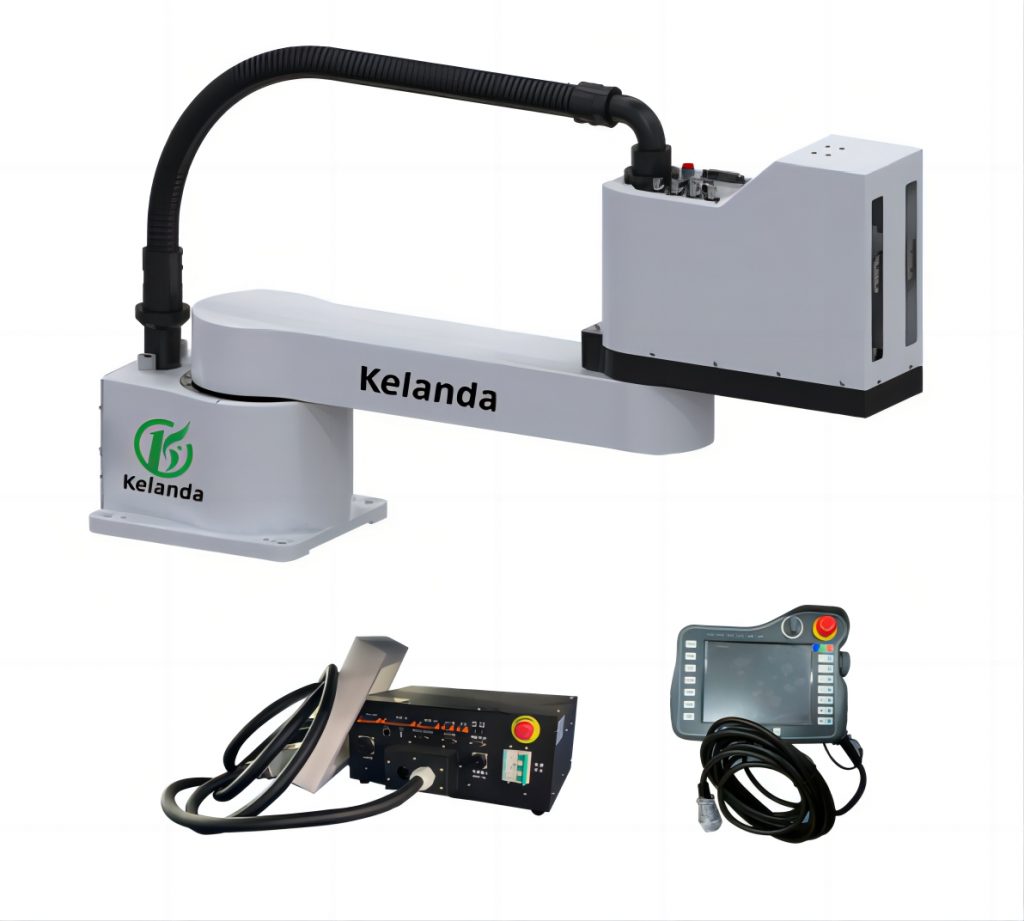

3 axes KLD310-800PTR
- Product Model: KLD310-800PTR
- Functions: Locking screws
- Axes: 3
- Payload: 10kg
- Installation Method: Floor Mounting Bracket
- Weight: 38kg
- Power Consumption: 1.35kW
- Maximum Arm Reach: 800mm
Why Choose Kelanda for Robot Arm Solutions?
Choosing Kelanda means partnering with an expert in industrial automation. Our 3-axis robotic arms are designed to solve the most common bottlenecks in assembly lines:
- High-Precision Consistency: With advanced motion control, our robot ensures every screw is locked at the correct position, eliminating errors common in manual assembly.
- Optimized Working Radius: The 800mm reach provides the flexibility to cover larger workpieces, making it an ideal choice for diverse industrial assembly setups.
- Superior 10KG Payload: Designed to handle heavy-duty tools and components, our 3-axis system maintains speed and stability even at its maximum load capacity.
- Rugged Industrial Reliability: Built with high-wear-resistant materials, our robotic arms are engineered for 24/7 industrial production, ensuring minimal downtime.
- Expert Integration Support: Kelanda provides comprehensive service—from custom fixture design and programming to installation and maintenance—ensuring your automation project is a success from day one.
specification
| Specification for Robot KLD310-800PTR | ||
| Function | Locking screws | |
| Total axes | 3 | |
| Maximum reach | 800mm | |
| Payload | rated load | 5kg |
| maximum load | 10kg | |
| Position repeat accuracy | 1st axis+2nd axis | ±0.015mm |
| 3 rd axis(elevating axis) | ±0.025mm | |
| Max speed | 1st axis | 375゜/sec |
| 2nd axis | 600゜/sec | |
| 3rd axis (elevating axis) | 1000mm/sec | |
| Max operating area | 1st axis | ±130゜ |
| 2nd axis | ±130゜ | |
| 3rd axis elevating axis | 120mm | |
| Installation parameters | Floor mounted | |
| Robot weight | 38Kg | |
| Power consumption | 1.35kw | |
| Installation environment | Temperature | 0～+45℃ |
| Humidity | 20～80％RH（non condensing） | |
| Vibration | ＜4.9M/S² | |

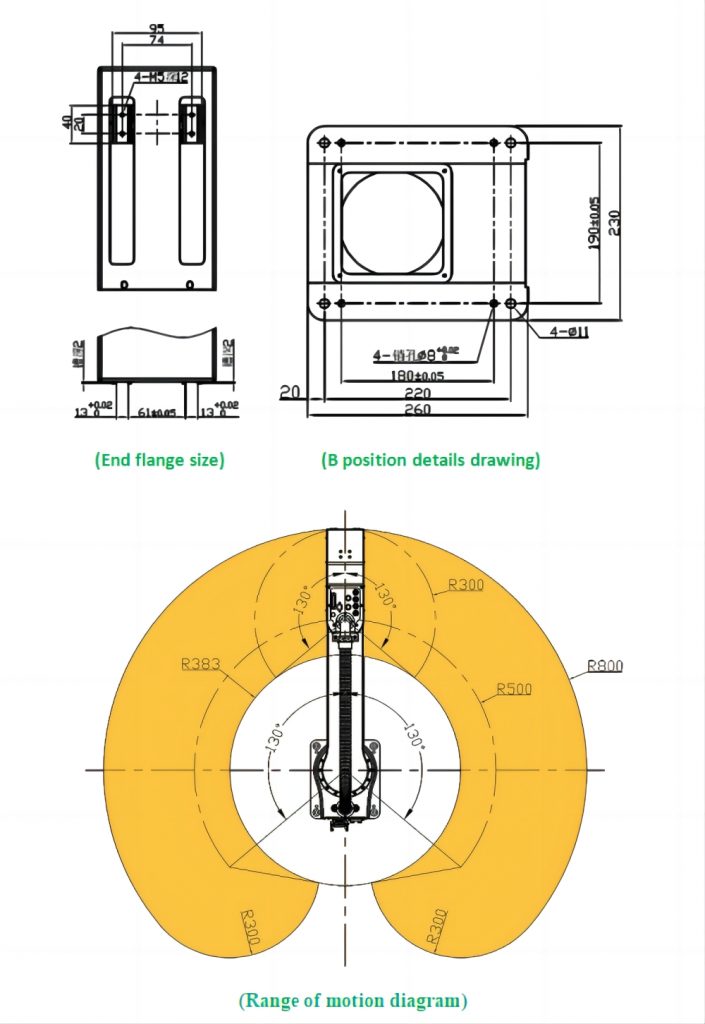

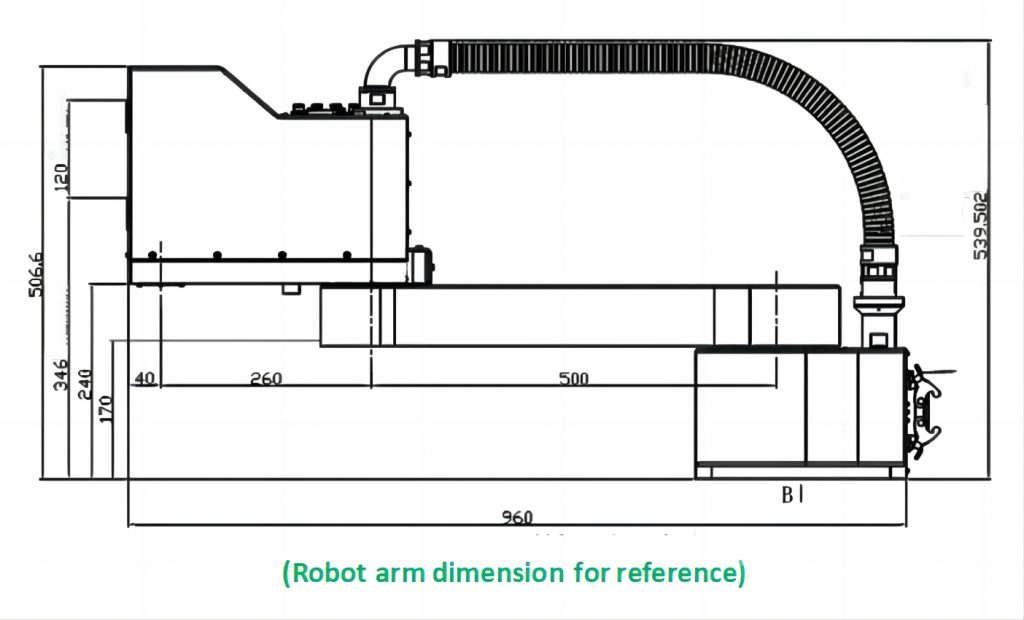

The motion range and installation dimensions diagram
v Reduction ratio: J1 axis (100) J2 axis (50) J3 axis (28.8) (1.6, lead 20mm)
Frequently Asked Questions (FAQ)
Is this 3-axis robot arm suitable for automatic screw locking?
Yes, the KLD310-800PTR is specifically optimized for automated screw locking, offering high precision and repeatability for production lines.
What is the maximum payload and working radius of this robot?
It features a maximum payload capacity of 10KG and a working radius of 800mm, providing a balance of power and reach for various tasks.
Does Kelanda provide technical support for programming?
Absolutely. We offer full-cycle support, including programming guidance, system integration, and professional technical assistance to ensure smooth operation.
How easy is it to integrate this robot into an existing assembly line?
The system is designed for straightforward integration with standard industrial mounts, allowing for a quick setup in most manufacturing environments.
