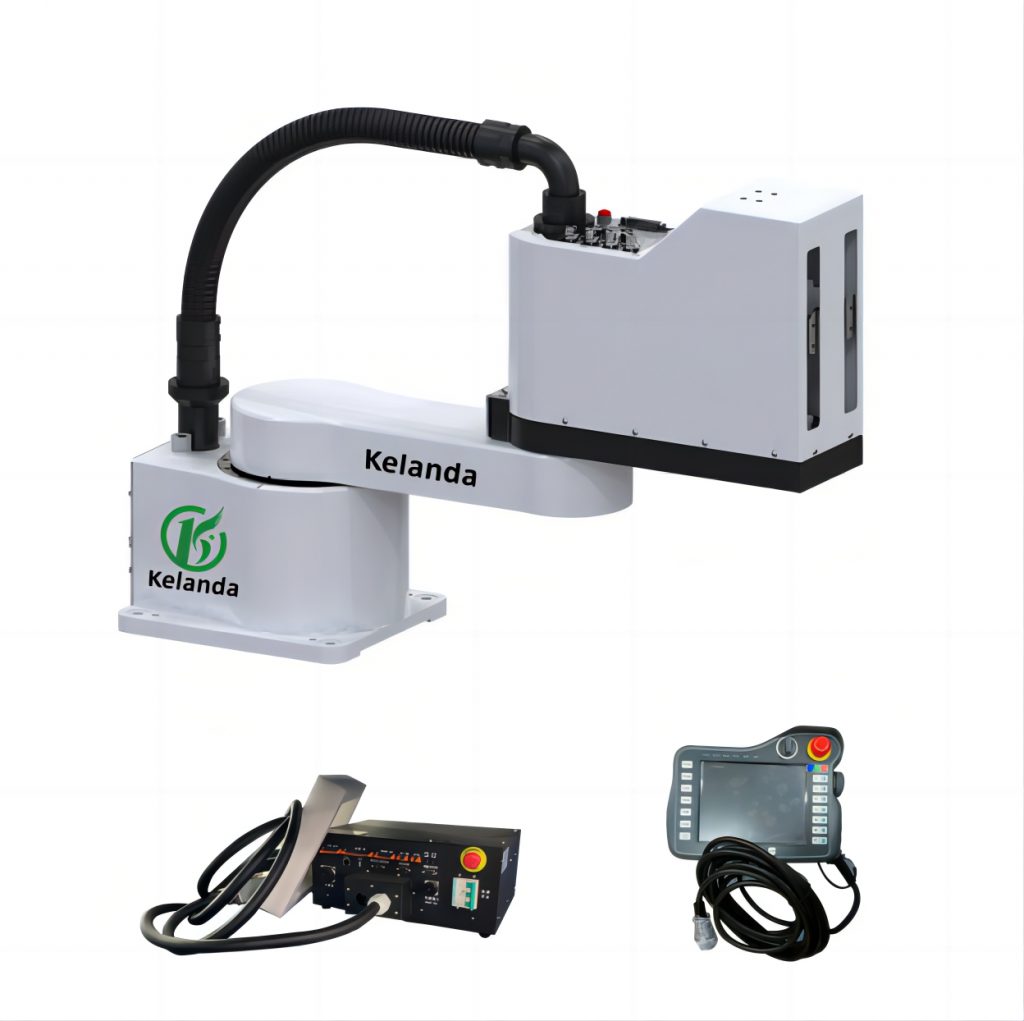

3 Axes Robot Arm (Model: KLD310-600PTR) With 10KG Payload
The 3 axes robot arm (Model: KLD310-600PTR) is a high-performance industrial robotic manipulator specifically engineered for automated screw locking applications. With a robust 10KG payload capacity and a 600mm working radius, this system delivers the motion consistency and torque precision required for modern production lines. By automating complex fastening tasks, this robot helps manufacturers increase throughput, reduce labor intensity, and ensure superior quality control in high-mix assembly environments.
3 axes KLD310-600PTR
- Product Model: KLD310-600PTR
- Functions: Locking screws
- Axes: 3
- Payload: 10kg
- Installation Method: Floor Mounting Bracket
- Weight: 35kg
- Power Consumption: 1.35kW
- Maximum Arm Reach:600mm
Why Choose Kelanda for Robot Arm Solutions
Choosing Kelanda means investing in a scalable, error-free automation future. Our KLD310-600PTR is designed to solve common assembly bottlenecks:
- High-Precision Consistency: Featuring a repeat positioning accuracy of up to ±0.015mm, our robot ensures that every screw is locked with perfect precision, eliminating stripped threads or floating screws.
- Optimized Payload & Reach: The 10KG max load and 600mm reach provide the versatility needed to handle various jigs and electronic components, making it ideal for flexible assembly cells.
- Energy & Space Efficient: With a power consumption of only 1.35kW and a compact floor-mounting structure, the system is designed to minimize your operational overhead and factory footprint.
- Reliable Industrial Performance: Built for 24/7 operation, the robot is rated for temperatures of 0~+45℃, ensuring stability in demanding factory environments.
- Expert Technical Support: From custom fixture design and programming guidance to maintenance training, Kelanda provides end-to-end support to keep your production line optimized.
Specification
| Specification for Robot KLD310-600PTR | ||
| Function | Locking screws | |
| Total axes | 3 | |
| Maximum reach | 600mm | |
| Payload | rated load | 5kg |
| maximum load | 10kg | |
| Permissible inertial torque of rotating axis | rated torque | 0.01kg.m2 |
| maximum torque | 0.12kg.m2 | |
| Position repeat accuracy | 1st axis+2nd axis | ±0.015mm |
| 3 rd axis(elevating axis) | ±0.025mm | |
| Max speed | 1st axis | 300゜/sec |
| 2nd axis | 375゜/sec | |
| elevating axis | 1000mm/sec | |
| rotation axis | 2000゜/sec | |
| Max operating area | 1st axis | ±130゜ |
| 2nd axis | ±130゜ | |
| elevating axis | 120mm | |
| Installation parameters | Floor mounted | |
| Robot weight | 35Kg | |
| Power consumption | 1.35kw | |
| Installation environment | Temperature | 0～+45℃ |
| Humidity | 20～80％RH（non condensing） | |
| Vibration | ＜4.9M/S² | |

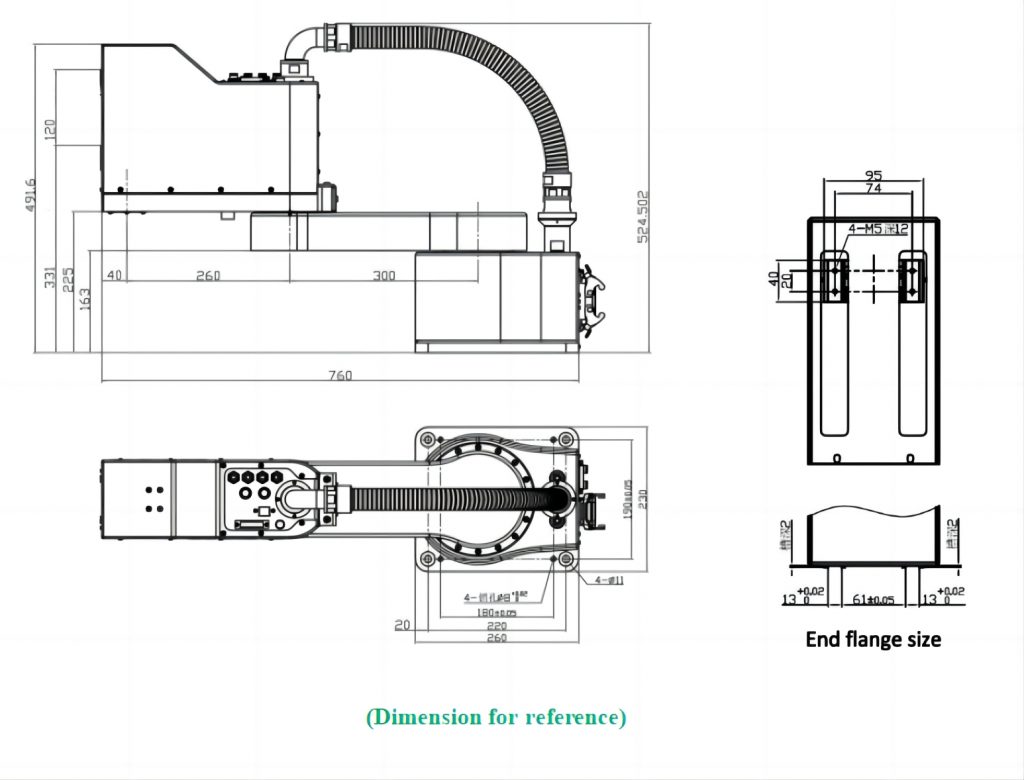

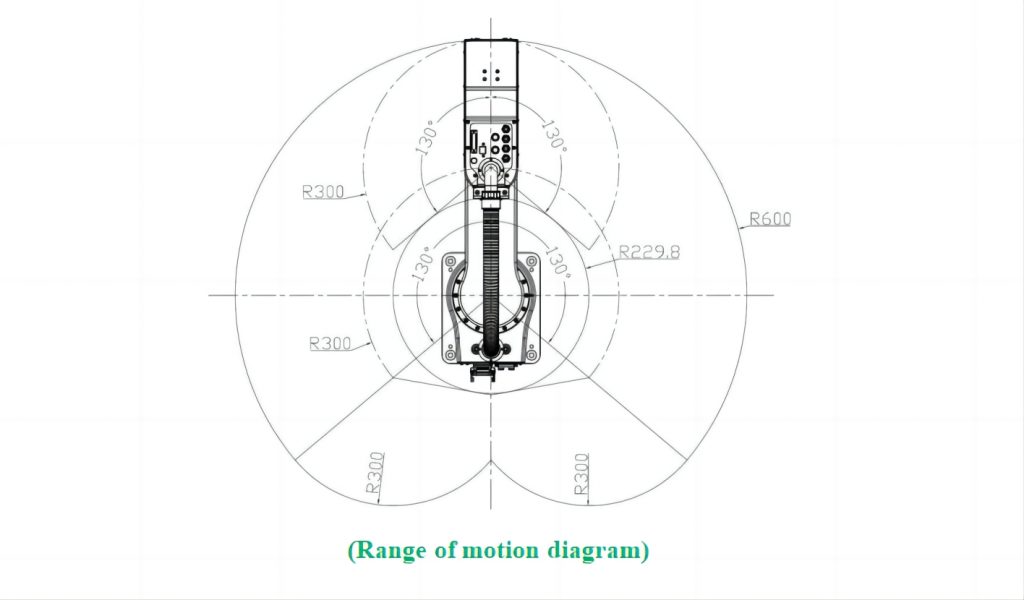

The motion range and installation dimensions diagram
v Theoretical deceleration ratio : J1 axis (100) , J2 axis (80), J3 axis (28.8) (1.6, lead of lead screw 20mm)
Frequently Asked Questions (FAQ)
Is this 3-axis robot arm suitable for automatic screw locking?
Yes, the KLD310-600PTR is specifically optimized for automated screw locking, offering high precision and repeatability for production lines.
What is the maximum payload and working radius of this robot?
It features a maximum payload capacity of 10KG and a working radius of 600mm, providing a perfect balance for most assembly tasks.
Is the system easy to integrate into an existing assembly line?
Absolutely. It utilizes a standard floor-mounting bracket design, allowing for straightforward integration into most industrial assembly workflows.
What technical support does Kelanda provide?
We provide comprehensive support, including programming documentation, system integration guidance, and professional technical assistance to ensure smooth operation.
