4 Axes Robot Arm With 10KG Payload And 700/800/900mm Reach
The 4 axes robot arm (Model: KLD410-700/800/900) is a high-speed, precision-engineered Scara robot designed for demanding industrial automation. With a robust 10KG payload capacity and flexible working radii of up to 900mm, this system is perfectly optimized for high-speed material handling and complex 3C electronics assembly. Its durable floor-mounting structure and compact design make it an ideal choice for manufacturers seeking to maximize throughput while maintaining exceptional motion consistency in a small footprint.
4 axes KLD410-700/800/900
- Product Model: KLD410-700/800/900
- Functions: Material Handling, 3C (likely referring to Computers, Communication, and Consumer electronics)
- Axes: 4
- Payload: 10kg
- Installation Method: Floor Mounting Bracket
- Weight: 35kg/38kg/41kg
- Power Consumption: 1.55W
- Maximum Arm Reach: 700/800/900mm
Why Choose Kelanda for Robot Arm Solutions?
Kelanda’s 4-axis robotic systems are engineered to bridge the gap between manual labor and full-scale automation. Here is why industry leaders prefer our KLD410 series:
- High-Throughput Performance: Specifically optimized for 3C assembly and material handling, our robot arm minimizes cycle times to keep your production line at peak performance.
- Superior Precision & Stability: Built with high-rigidity components, the robot ensures stable operation even at high speeds, crucial for delicate electronics manufacturing.
- Versatile Working Reach: Available in 700mm, 800mm, and 900mm reaches, we provide the flexibility to fit your existing production cell layout perfectly.
- Energy & Space Efficient: With a compact design and low power consumption (1.55kW), this system is both cost-effective to run and easy to integrate into tight factory spaces.
- End-to-End Technical Support: We provide comprehensive assistance, from custom fixture design and programming support to on-site installation and maintenance training.
Specification
| Specification for Scara Robot Arm KLD410-700/800/900 | ||
| Function | Material handling, 3C products | |
| Total axes | 4 | |
| Maximum reach | 700/800/900mm | |
| Payload | rated load | 5kg |
| maximum load | 10kg | |
| Position repeat accuracy | 1st axis+2nd axis | ±0.02mm |
| elevating axis | ±0.01mm | |
| rotation axis | ±0.01゜ | |
| Max speed | 1st axis | 300゜/sec |
| 2nd axis | 375゜/sec | |
| elevating axis | 1041mm/sec | |
| rotation axis | 1500゜/sec | |
| Max operating area | 1st axis | ±125゜ |
| 2nd axis | ±150゜ | |
| elevating axis | 200mm | |
| rotation axis | ±360゜ | |
| Installation parameters | Floor mounted | |
| Robot weight | 35kg/38kg/41Kg | |
| Power consumption | 1.55kw | |
| Installation environment | Temperature | 0～+45℃ |
| Humidity | 20～80％RH（non condensing） | |
| Vibration | ＜4.9M/S² | |

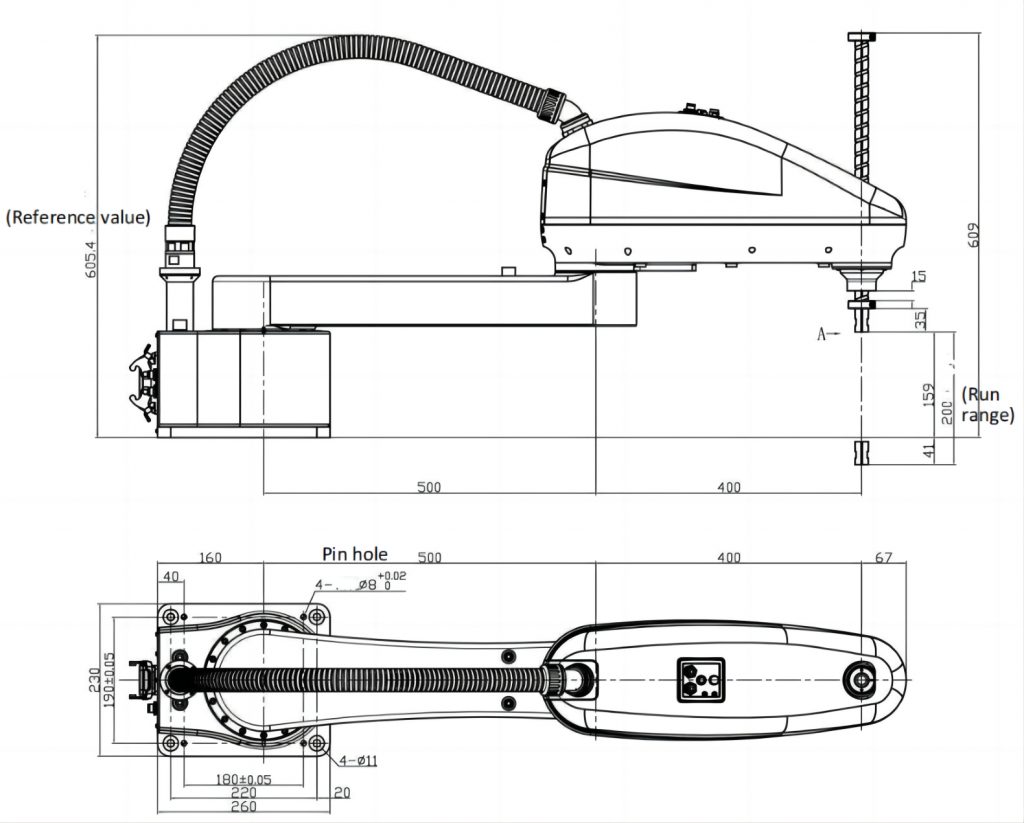

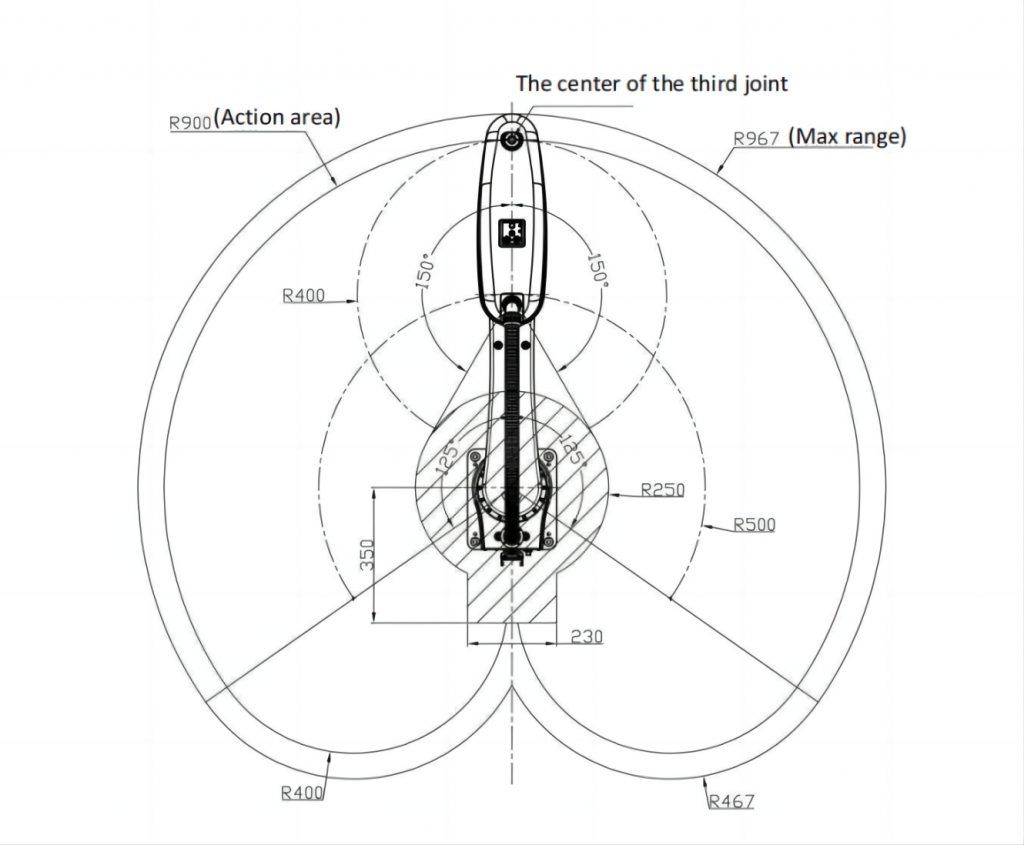

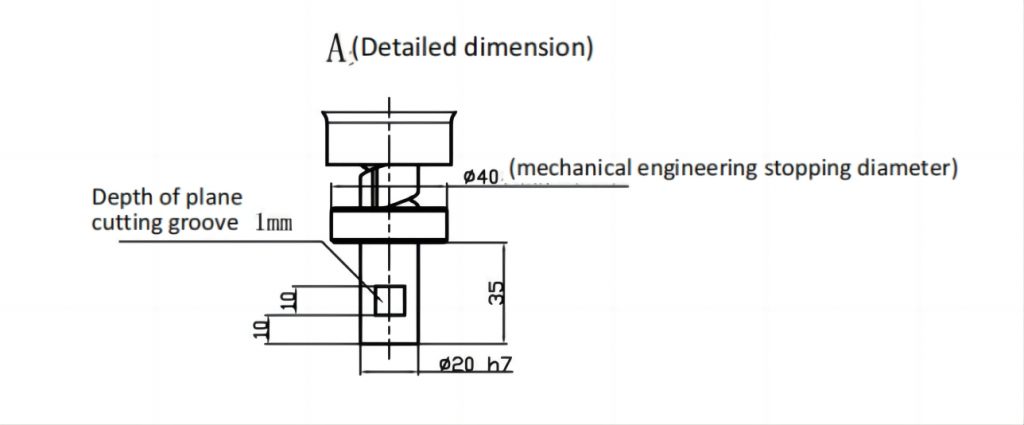

The motion range and installation dimensions diagram
Theoretical deceleration ratio :J1 axis (100) J2 axis (80) lifting axis (deceleration ratio 1.6, lead 20) Rotating axis (20)
Three – four – axis coupling ratio should be calculated according to the system definition
Frequently Asked Questions (FAQ)
Is this 4 axes robot arm suitable for 3C electronics assembly?
Absolutely. The KLD410 series is specifically optimized for the 3C industry, offering the speed and precision required for delicate electronic component handling.
What are the different working radius options?
We offer three configurations to suit your workspace: 700mm, 800mm, and 900mm, all supporting a 10KG maximum payload.
Is the installation process difficult?
No, the robot features a standard floor-mounting bracket design, making it straightforward to integrate into most industrial production lines.
Does Kelanda offer integration support?
Yes, we provide full-cycle technical support, including fixture customization, programming guidance, and commissioning to ensure your line is optimized.
